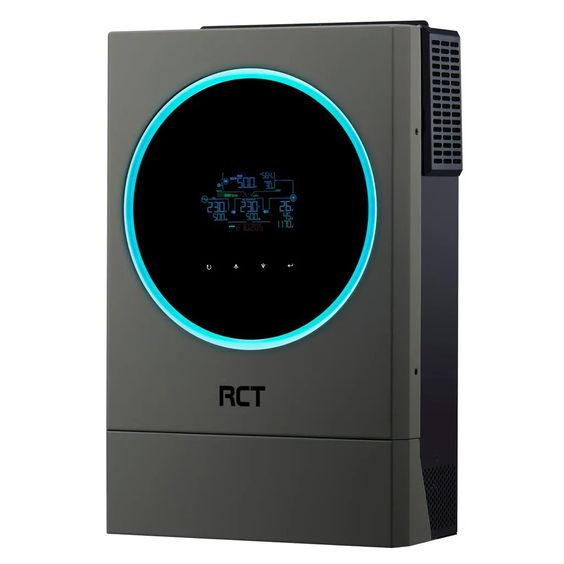

RCT Axpert MK4 3.6K 3.6kVA 3.6kW 48V Hybrid Inverter

Features:

• Cold start function.
• Pure sine wave inverter.
• Auto restart while AC is recovering.
• Built-in MPPT solar charge controller.
• Overload and short circuit protection.
• Compatible to mains voltage or generator power.
• Selectable charging current based on applications.
• Configurable AC/Solar input priority via LCD setting.
• Smart battery charger design for optimized battery performance.
• Selectable input voltage range for home appliances and personal computers.

Technical specifications:

• Model: Axpert MKS IV 3600-48.
• Rated Power: 3600VA/3600W.

Input

• Voltage: 230VAC.
• Selectable Voltage Range: 170-280VAC(For Personal Computers), 90-280VAC (For Home Appliances).
• Frequency Range: 50Hz/60Hz(Auto sensing).

Output

• AC Voltage Regulation: 230VAC ± 5%.
• Overload Capacity: 5s @≥150% Load, 10s @ 110% ~ 150% Load,
  100ms @ ≥ 200% Load
• Efficiency(Peak): 93%.
• Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances).
• Waveform: Pure sine wave.

Communication Interface

• USB / RS232 / RS485 / Wi-Fi / Dry-contact

Battery and AC Charger

• Battery Voltage: 48VDC.
• Floating Charge Voltage: 54VDC.
• Overcharge Protection: 66VDC.

Solar Charger

• Maximum PV Array Power: 5000W.
• MPPT Range @ Operating Voltage: 120VDC ~ 430VDC.
• Maximum PV Array Open Circuit Voltage: 500VDC.
• Maximum Solar Charge Current: 100A.
• Maximum AC Charge Current: 100A.

Physical

• Dimension: 140mm x 295mm x 468mm.
• Weight: 11kg.

Operating Environment

• Humidity: 5% to 95% Relative Humidity(Non-condensing).
• Operating Temperature: 10°C - 50°C.
• Storage Temperature: -15°C - 60°C.
