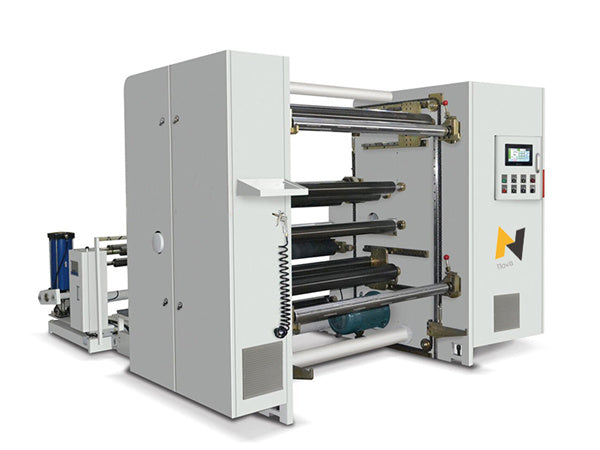

AFull Automatic Slitting Rewinding Machine(Three Servo Motors)

Main features:

● 1.PLC controlling system make the machine having an intelligent operation. Machine usingthree sets servo motors control keep the rewinding roll with high precision. Automatic tension control system. Center&Surface Rewinding Type make the rewinding roll compact and slitting surface is very smooth.

● 2.Machine use frequency converter adjust speed, keep stable running when speed go up.

● 3.Automatic count meter, automatic alarm and stop when the roll reach the setting diameter or length.

● 4. Rewinding shaft use two pcs air shaft structure，finished rewinding rolls automatic unloading device.

● 5.Round blade knife slitting the material, blade knife freely adjustment by manual,and waste material take out by fan

● 6.The special ultrasonic deviation correction and tracking device of gaobao is used for unwinding and deviation correction

● 7. hydraulic shaft-less mother roll unwinding structure

Technical parameter：

 Model

NWFQ-1300A

Max width mother roll

1300mm

Min width finished roll

30mm

Max diameter mother roll

1400mm

Max diameter finished roll

1000mm

Max mother roll weight

1200KG

Speed of slitting

0-350/min

Slitting capability

45-200gsm

Rewinding way

Central&surface

Precision

±0.2mm

Speed regulation control

Frequency converter

Power input

380V,50HZ,3PH

Dimension

3500*2900*1900

Total weight

4500KG
