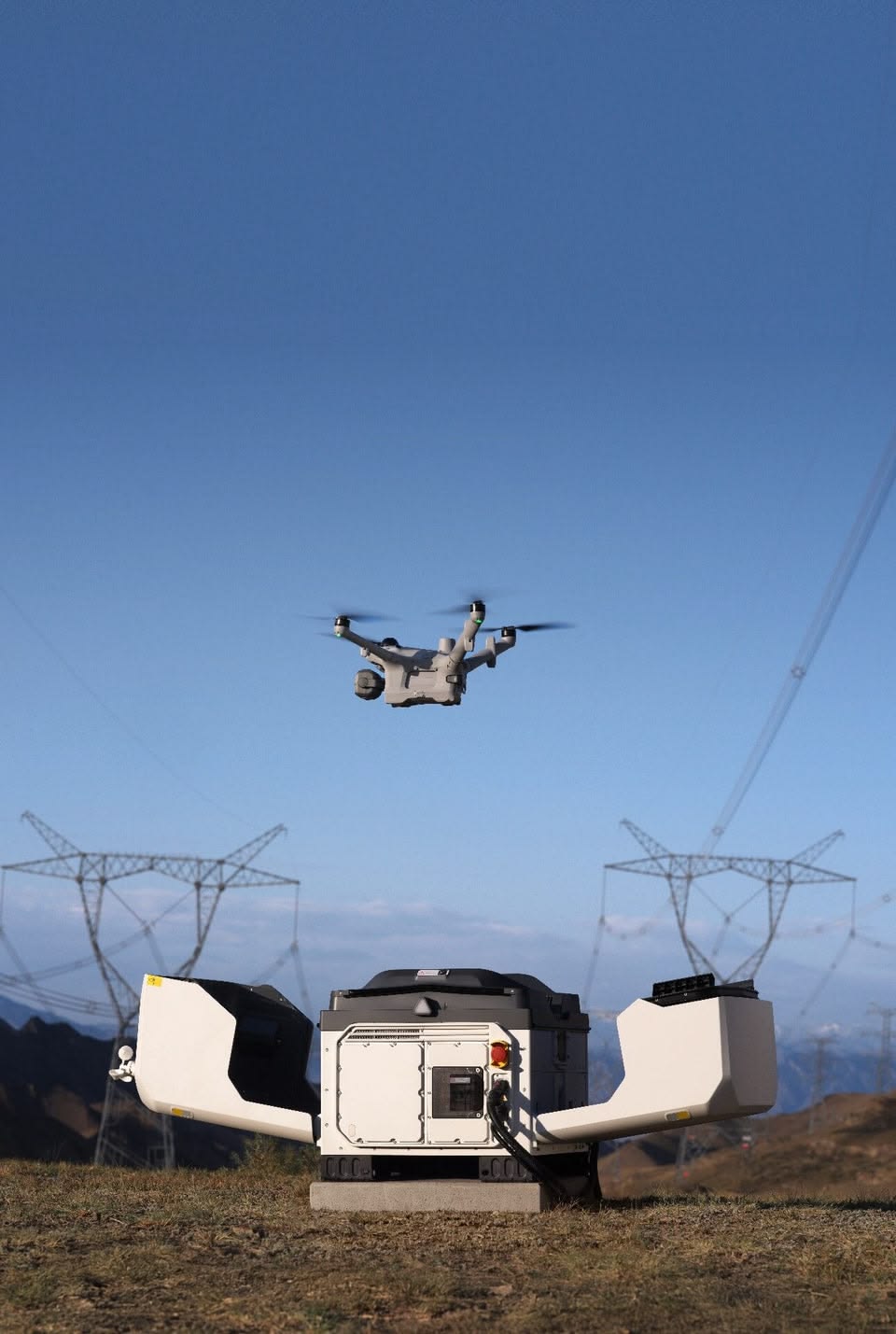

DJI Dock 4 + Matrice 5TD Enterprise Drone System

Automated Drone Operations | Thermal Inspection | Remote Monitoring | Enterprise Security

Built Around the Mission

One system. Real operational roles.

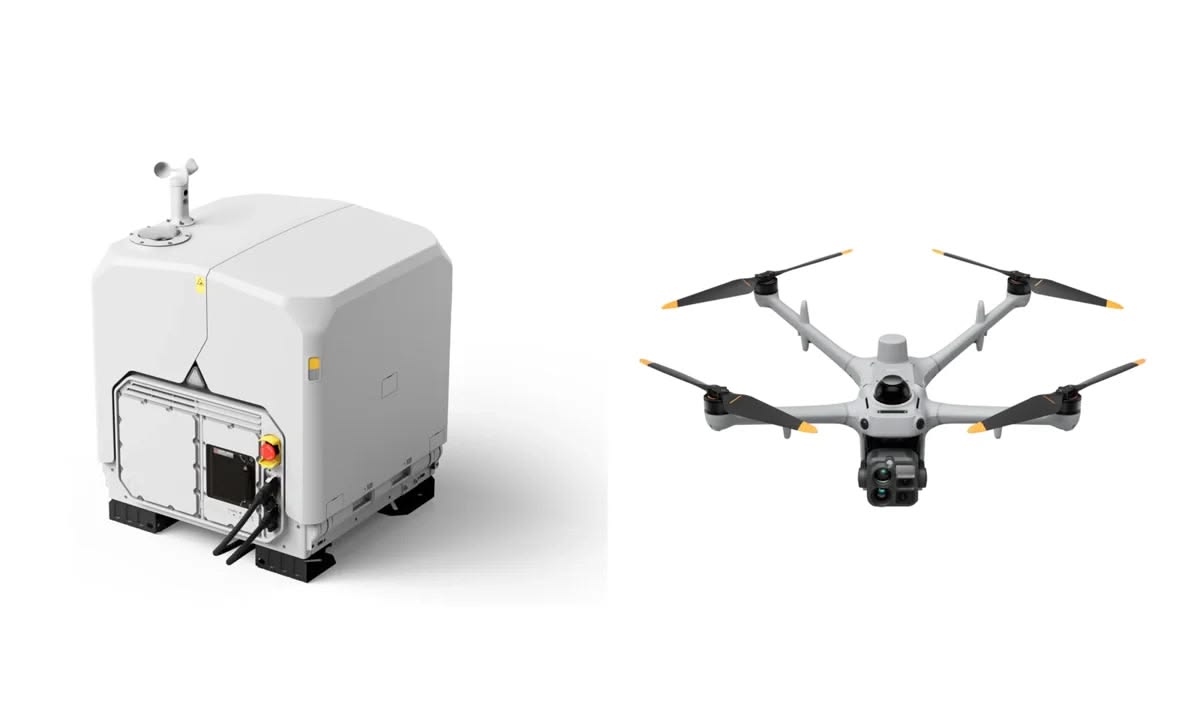

The DJI Dock 4 with the DJI Matrice 5TD is an advanced drone-in-a-box solution designed to support planned remote drone operations, recurring inspections and aerial situational awareness. Combining an automated docking station with a multi-sensor enterprise aircraft, the system enables organisations to plan repeatable missions, capture visual and thermal information, and manage operations through compatible DJI software.

For security teams, infrastructure operators, mining companies, energy providers and industrial organisations, the system offers a platform for developing remote monitoring workflows around defined operational requirements.

Tecafrica Solutions supplies enterprise drone technology and can assist with scoping the appropriate hardware and supporting requirements for your project.

Quotation-led enterprise solution. Pricing, regional availability, software requirements, installation, integration and operational enablement are confirmed according to the project scope.

Key Features and Benefits

• Automated battery swapping: The DJI Dock 4 is designed to swap the aircraft battery in less than 25 seconds under DJI's stated test conditions.

• Up to 59 minutes of flight time: The Matrice 5TD has a manufacturer-rated maximum flight time of 59 minutes under controlled, windless test conditions.

• High-resolution thermal imaging: A 1280 × 1024 thermal sensor supports detailed thermal observation and temperature-measurement workflows.

• 11× telephoto capability: Supports detailed observation of distant subjects when used within appropriate operational limits.

• Remote mission management: Compatible DJI software supports mission planning, remote operations and live viewing, subject to the required configuration.

• Built for demanding environments: The dock is rated IP56 and the aircraft IP55, with manufacturer-specified operating temperatures from −40°C to 50°C.

• Enterprise integration options: Compatible software platforms and supported third-party interfaces can be evaluated for the intended deployment.

Published specifications are manufacturer ratings. Actual performance depends on environmental conditions, configuration, connectivity, firmware and operational requirements.

Product Overview

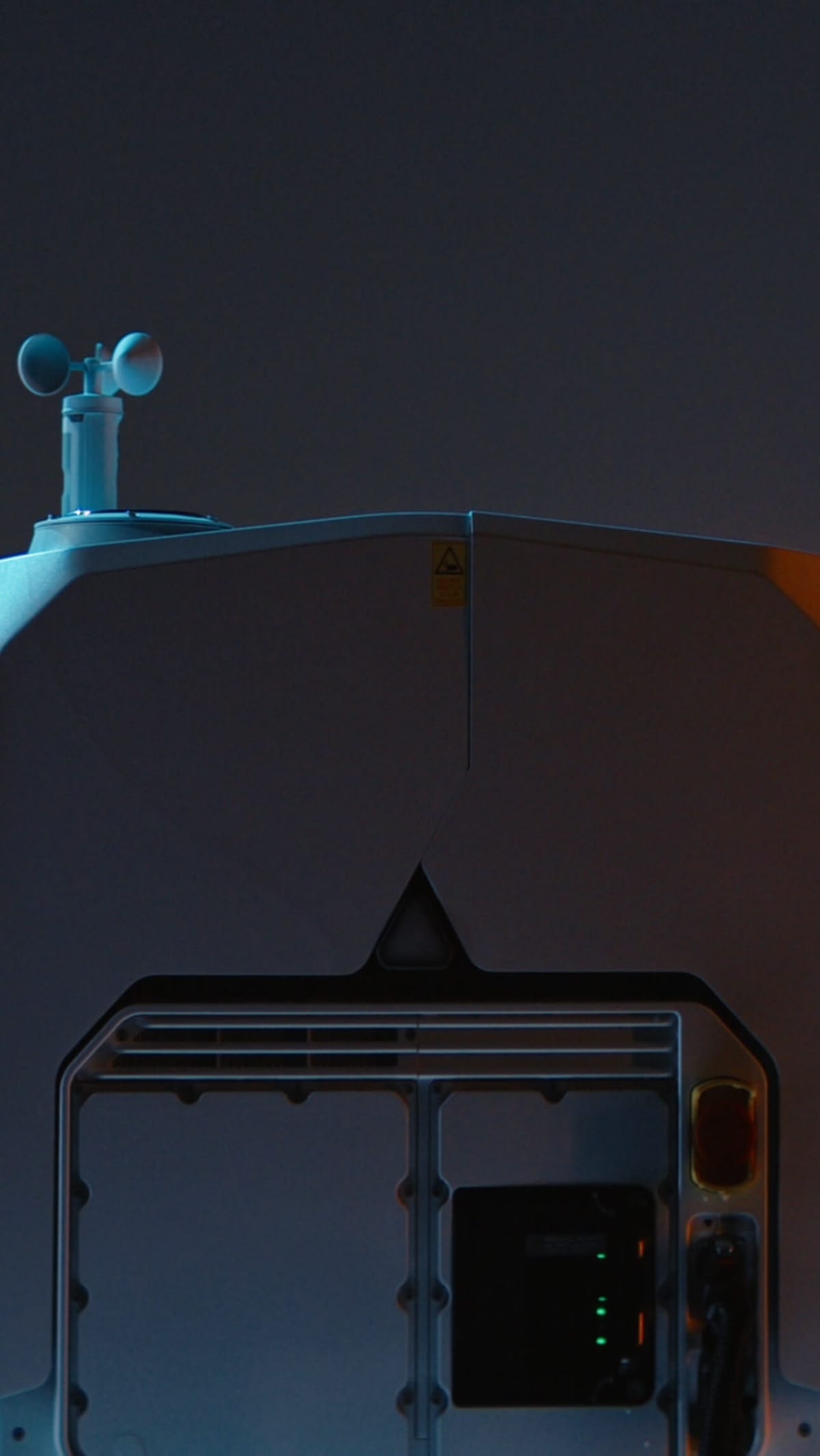

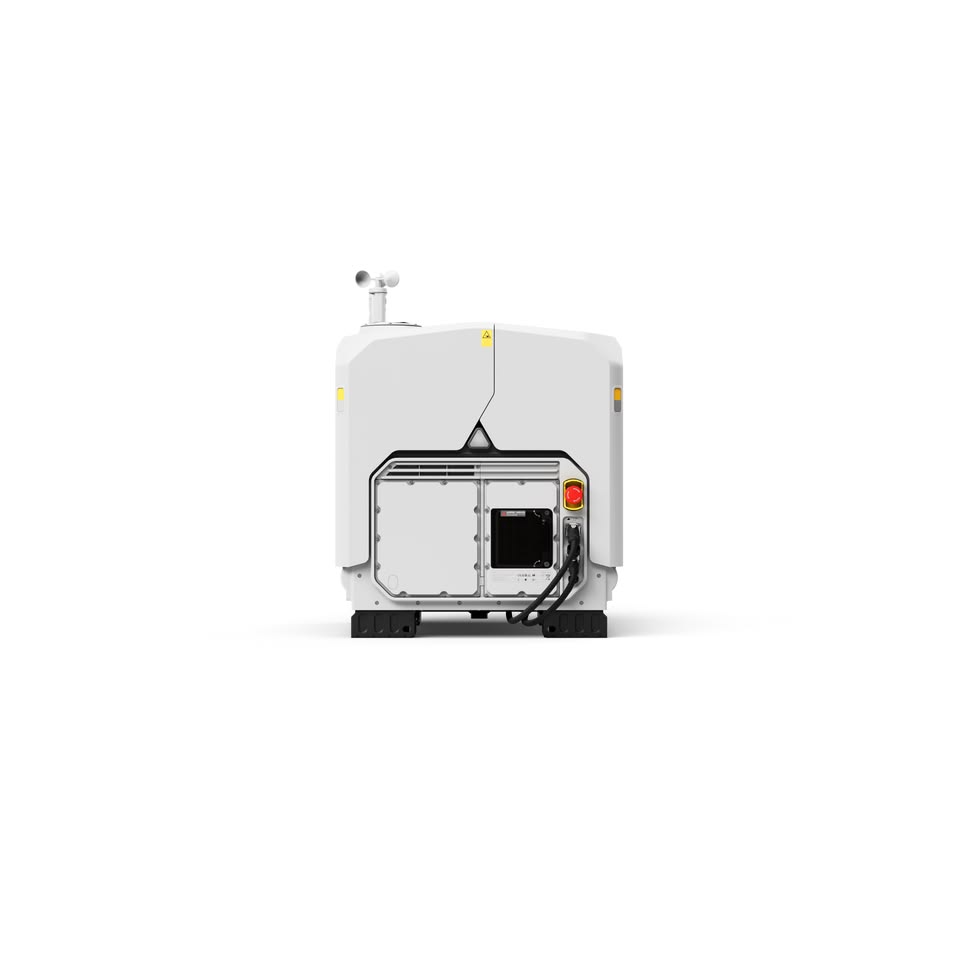

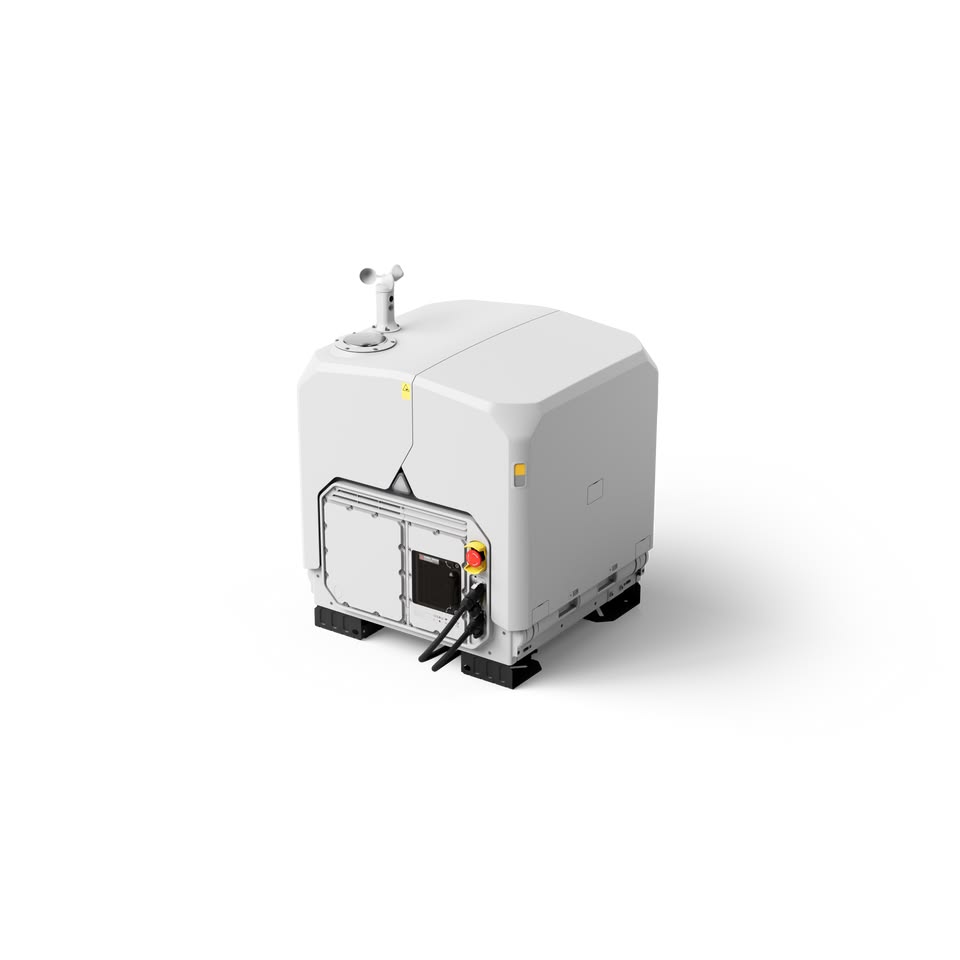

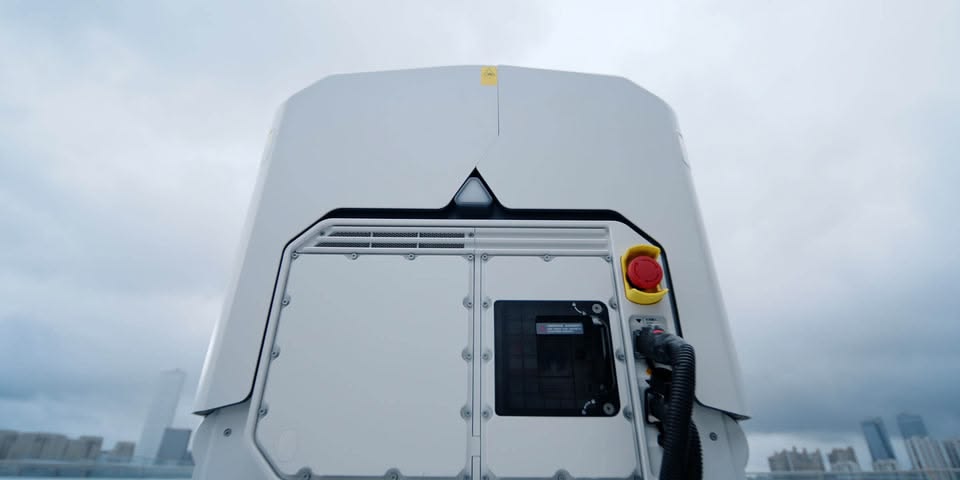

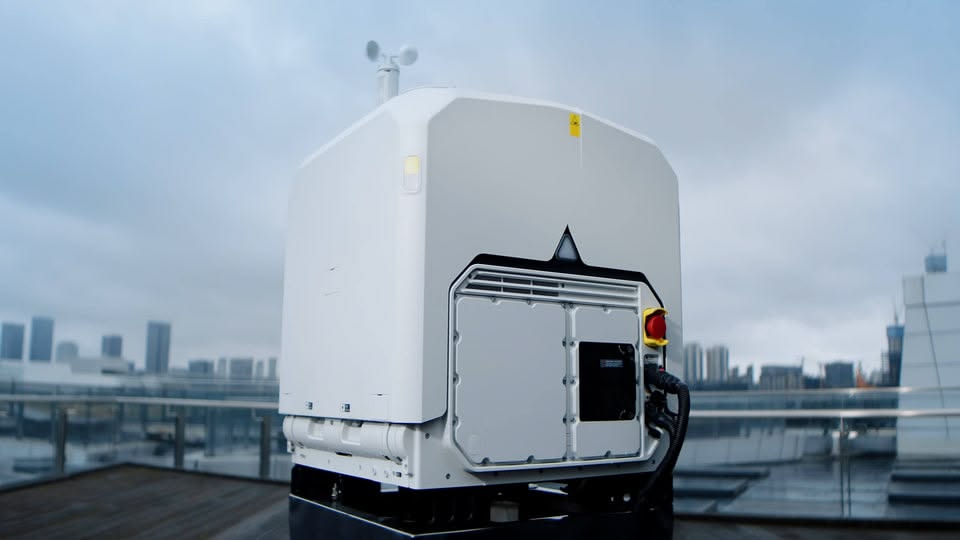

DJI Dock 4: Automated Drone Deployment

The DJI Dock 4 provides a fixed base for an assigned aircraft, supporting automated mission workflows and battery management between flights. Once appropriately installed and configured, it can support repeatable missions without requiring manual battery replacement after every sortie.

The system is designed for organisations that need regular aerial observations from a defined site, including scheduled inspections, perimeter observation and infrastructure monitoring.

Key dock features include:

• Automated battery swapping and charging.

• Remote mission support through compatible DJI software.

• Environmental protection rated IP56.

• AC power input of 100–240 V, 50/60 Hz.

• Support for compatible DJI O4 Ground Station and RTK workflows.

• A design intended for permanent or semi-permanent deployment following a suitable site assessment.

The dock requires an appropriate installation location, reliable power and network connectivity, suitable access for maintenance, and a verified operating plan. Site preparation and installation are not assumed to be included in the hardware quotation.

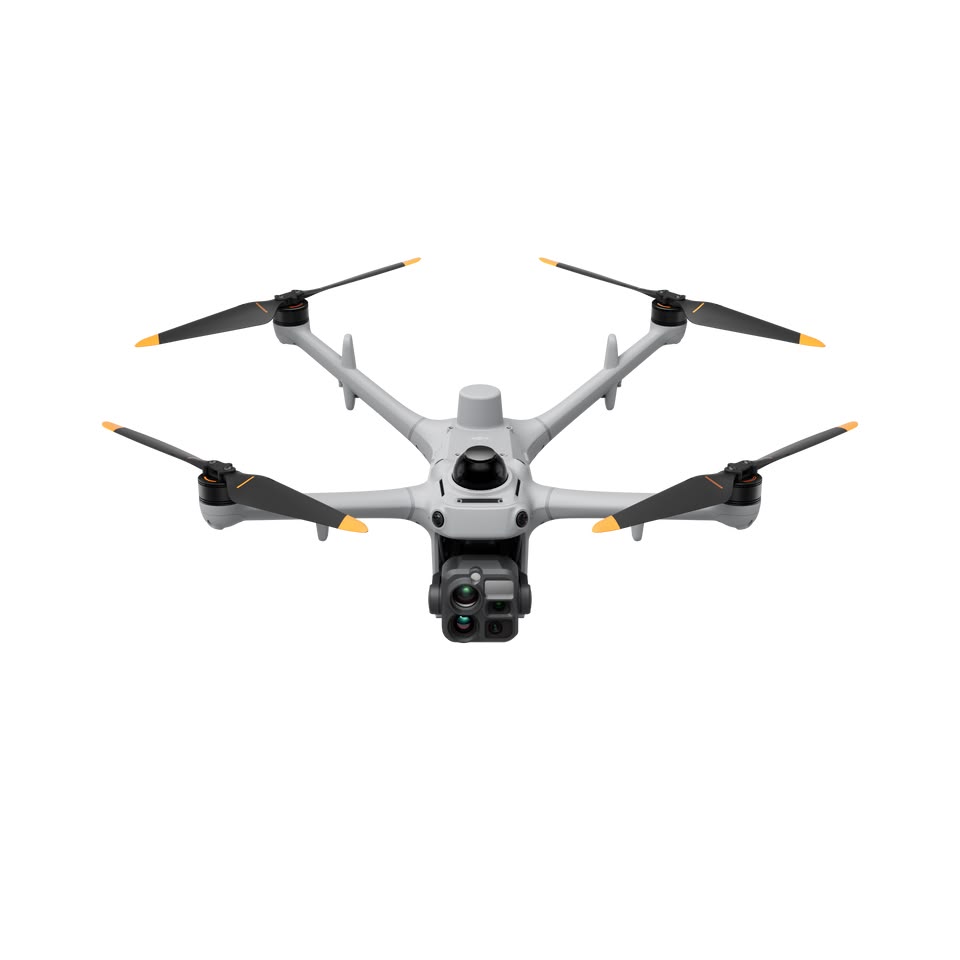

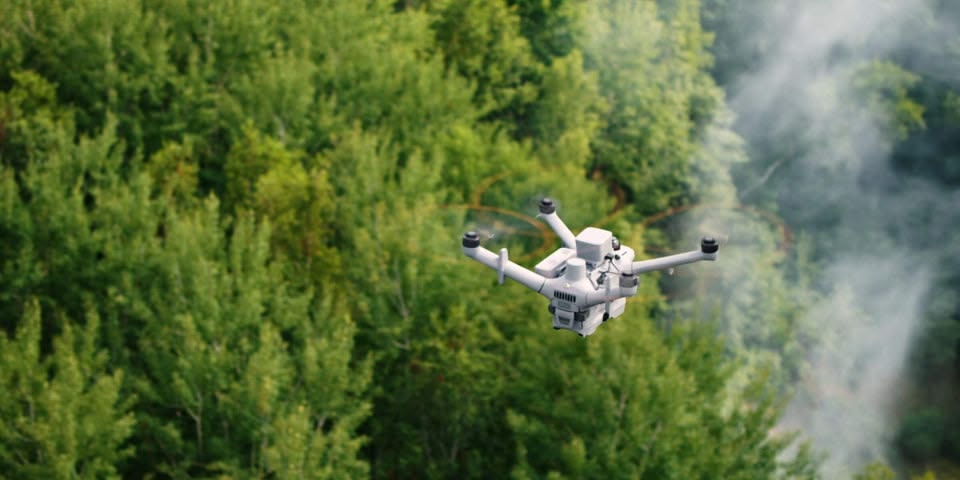

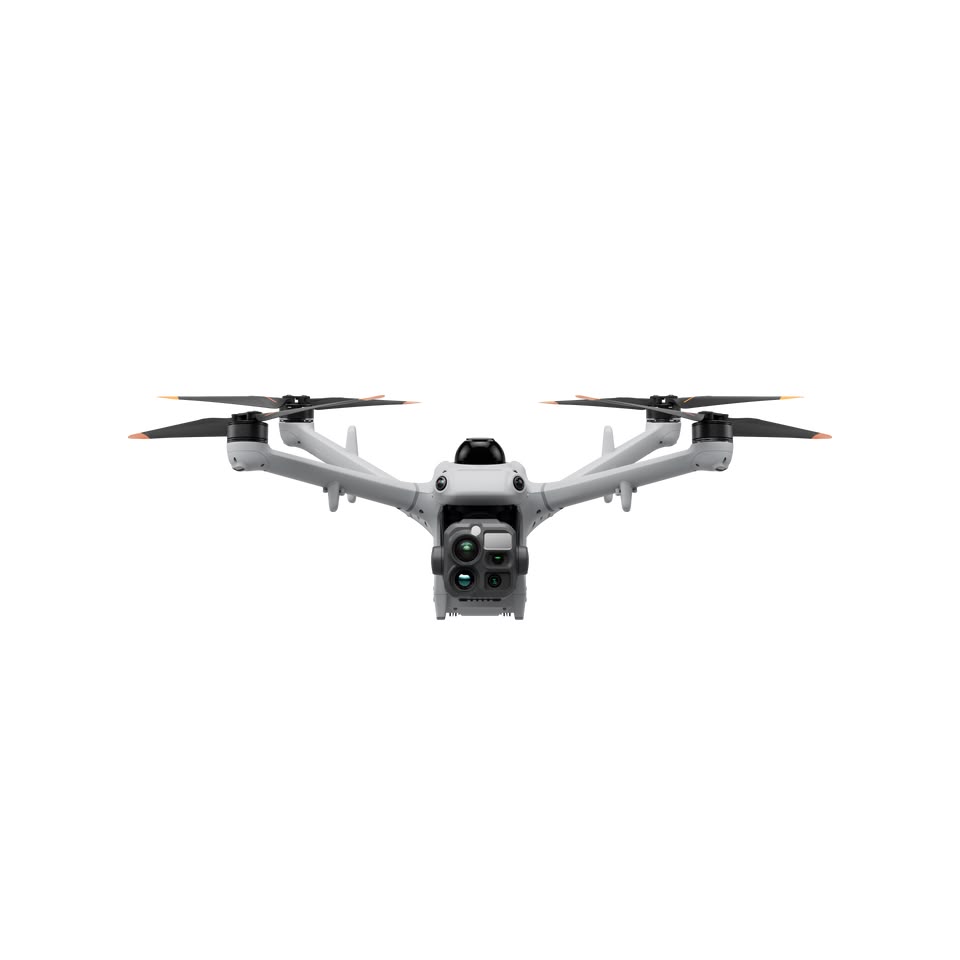

DJI Matrice 5TD: Thermal and Visual Intelligence

The DJI Matrice 5TD is the aircraft component of the system, combining thermal and visual sensing capabilities for enterprise observation and inspection.

Its multi-sensor configuration supports applications where operators need to identify points of interest, compare thermal and visual information, or inspect assets from a safe and appropriate distance.

Key capabilities include:

• 1280 × 1024 native thermal imaging resolution.

• Thermal video capture at up to 30 Hz.

• 11× telephoto camera capability.

• Up to 59 minutes of manufacturer-rated maximum flight time.

• Integrated RTK module for supported positioning workflows.

• Integrated LiDAR and millimetre-wave radar.

• Onboard AI detection supporting multiple object types.

• Integrated warning light and support for compatible accessories.

Thermal imagery can help identify temperature differences that warrant further investigation. It does not, by itself, establish the cause of a fault or replace appropriate engineering inspections and diagnostic procedures.

Designed for Enterprise Applications

1. Security and Public Safety

Support security teams with planned aerial observation, perimeter monitoring and incident awareness.

Potential applications include:

• Observation of designated perimeter sectors.

• Aerial assessment of alarm locations.

• Remote visual checks of selected areas.

• Thermal observation in suitable low-light or nighttime conditions.

• Support for incident documentation and operator handover.

The operational workflow should define who authorises a flight, who assesses the resulting imagery and how observations are escalated. Any security-system or alarm-platform integration must be assessed and confirmed separately.

2. Mining and Infrastructure

Develop repeatable aerial observation workflows for large operational areas and infrastructure assets.

Potential applications include:

• Inspection of selected structures and facilities.

• Monitoring of access routes and designated site areas.

• Visual and thermal observation of equipment.

• Scheduled surveys of defined operational zones.

• Documentation of visible changes between inspections.

Terrain, site traffic, overhead services, communications coverage and safe return routes should be assessed before missions are commissioned.

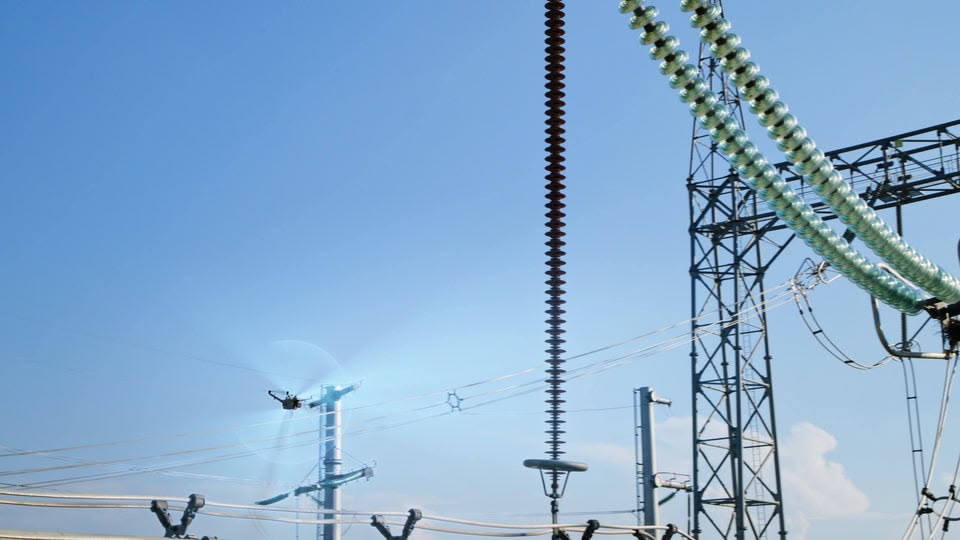

3. Energy and Utilities

Use visual and thermal information to support infrastructure monitoring and maintenance planning.

Potential applications include:

• Thermal screening of suitable electrical and industrial assets.

• Visual inspection of selected infrastructure.

• Observation of temperature anomalies for further investigation.

• Repeatable inspection routes and condition-monitoring workflows.

• Remote review of accessible asset areas.

Thermal results depend on operating conditions, environmental influences, viewing angle, emissivity and other measurement factors. Critical findings should be verified using the appropriate inspection method.

4. Industrial Facilities and Remote Sites

For facilities that require recurring aerial observations, the Dock 4 can provide a platform for developing scheduled missions and remote monitoring procedures.

Applications may include facility observation, site progress documentation, selected equipment inspections and visual checks of remote operational areas.

Each deployment should be designed around the required coverage, available connectivity, operating environment and the organisation's maintenance and safety procedures.

Technical Specifications

DJI Dock 4

DJI Matrice 5TD

Important: Maximum flight time, maximum operating radius, temperature ranges and charging times are manufacturer-published figures measured under specified conditions. They are not guarantees of usable mission duration, coverage or accuracy at a particular site. Confirm the current official specification and regional configuration before ordering.

Software, Connectivity and Integration

The DJI Dock 4 system supports compatible DJI software for mission preparation, remote operations and live viewing. Supported software configurations include DJI FlightHub 2 and certain compatible third-party platforms.

Depending on the selected configuration and licensing, a deployment may involve:

• Mission planning and scheduled flight workflows.

• Remote access to supported aircraft and dock functions.

• Live viewing and review of captured information.

• RTK positioning workflows where appropriately configured.

• Evaluation of third-party platforms and supported interfaces.

Software subscriptions, cloud or on-premises deployment, cellular connectivity, network equipment and third-party integration work should be itemised in the quotation where applicable.

Integration note: Compatibility does not mean that every alarm system, video management system (VMS), control-room platform or enterprise application connects automatically. Integration requirements must be validated against the actual software versions, available interfaces, network design and security requirements.

Deployment Requirements

A successful deployment involves more than the aircraft and dock. Before ordering, the project team should confirm:

1. Site suitability: Proposed location, mounting arrangements, drainage, weather exposure, overhead obstacles, public access and maintenance access.

2. Power: Available electrical supply, protection, grounding and any required backup arrangements.

3. Connectivity: Network availability, bandwidth, coverage and any additional connectivity hardware or subscriptions.

4. Operational design: Mission area, route planning, flight permissions, emergency procedures and responsible personnel.

5. Software and integration: Required licences, user access, data storage, cybersecurity and any third-party interfaces.

6. Commissioning and support: Installation scope, configuration, acceptance testing, maintenance and escalation arrangements.

The final configuration and project cost depend on the site assessment and agreed deliverables.

South African Aviation Compliance

Automated mission capability does not automatically authorise a flight.

Commercial, corporate and other applicable operations in South Africa must comply with the relevant South African Civil Aviation Authority (SACAA) requirements. Depending on the operation, this can include aircraft registration, the applicable RPAS Letter of Approval, operator certification, remote pilot licensing and any additional permissions required for the proposed airspace or operating conditions.

Beyond Visual Line of Sight (BVLOS) operations must not be assumed to be permitted merely because the dock supports remote or automated missions. The proposed operating concept must be assessed against the applicable regulations and permissions before operations commence.

Operators must also address applicable privacy, property-access, occupational safety, site-security and communications requirements.

Customers should confirm their specific operational requirements with the SACAA and an appropriately authorised aviation operator before deployment.

What Is Included?

The exact supply configuration must be confirmed in the formal quotation.

The proposed solution is centred on the DJI Dock 4 and its compatible DJI Matrice 5TD aircraft. The quotation should clearly identify the supplied dock, aircraft, batteries, O4 Ground Station and any other hardware included in the selected package.

The following items should not be assumed to be included unless expressly stated:

• Site survey, mounting structures and civil or electrical works.

• Installation, configuration and commissioning.

• Additional network equipment or cellular connectivity services.

• FlightHub 2 or other software subscriptions.

• Custom alarm, VMS or enterprise-system integrations.

• Aviation approvals, operator services or specialist compliance work.

• Additional accessories, spare parts, training or ongoing maintenance agreements.

Tecafrica Solutions can assist in identifying the requirements that need to be specified and quoted for the proposed deployment.

Frequently Asked Questions

Can the DJI Dock 4 operate without an on-site pilot for every mission?

The system is designed to support automated remote operations. However, the mission, aircraft configuration, software, communications, operator responsibilities and applicable aviation permissions must all support the intended operating model.

How quickly can the aircraft return to operation after landing?

DJI specifies a battery-swap time of less than 25 seconds and an operational turnaround of less than 45 seconds under controlled test conditions. Actual turnaround depends on operating conditions and the system configuration. This does not mean continuous flight or uninterrupted coverage.

Can the Matrice 5TD detect heat anomalies?

Yes. Its thermal camera supports high-resolution thermal imaging and temperature measurement. Results should be interpreted in context and verified where necessary using appropriate inspection methods.

Can the system connect to an existing security control room?

Potentially, depending on the existing systems, software interfaces, network architecture and security requirements. Integration must be technically assessed and quoted separately where required.

Is installation included?

Installation, site preparation and commissioning are project-specific. They should be explicitly listed in the quotation rather than assumed to form part of the hardware package.

Can it be used for BVLOS operations in South Africa?

The hardware supports remote-operation workflows, but BVLOS use requires assessment against the applicable SACAA regulations and the permissions granted for the proposed operation. The equipment alone does not grant permission to fly BVLOS.

How do I obtain pricing?

Contact Tecafrica Solutions with your site location, intended application, existing aviation arrangements and any software or integration requirements. We can use this information to help define the proposed hardware configuration and supporting scope for a quotation.

Request a Quote from Tecafrica Solutions

Planning an automated drone deployment for security, mining, infrastructure, energy or industrial monitoring?

Contact Tecafrica Solutions to discuss the DJI Dock 4 and Matrice 5TD system, the intended operational workflow and the supporting requirements for your site.

To help us prepare a suitable quotation, please provide:

• Company and project location.

• Intended application and mission objectives.

• Proposed dock location and available power and connectivity.

• Existing drone operator and aviation compliance arrangements.

• Software, control-room or third-party integration requirements.

• Preferred commissioning timeframe.

Tecafrica Solutions — Enterprise drone technology for demanding operational environments.

Pricing and availability are subject to confirmation. Final supply configuration, included accessories, installation, software, integrations and support are determined by the written quotation.
