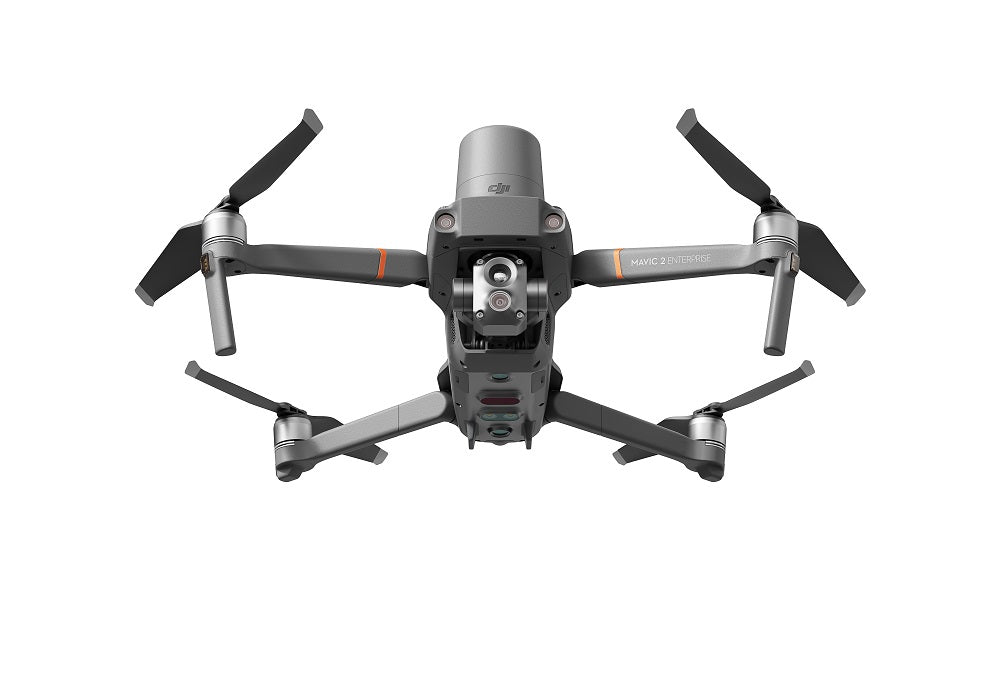

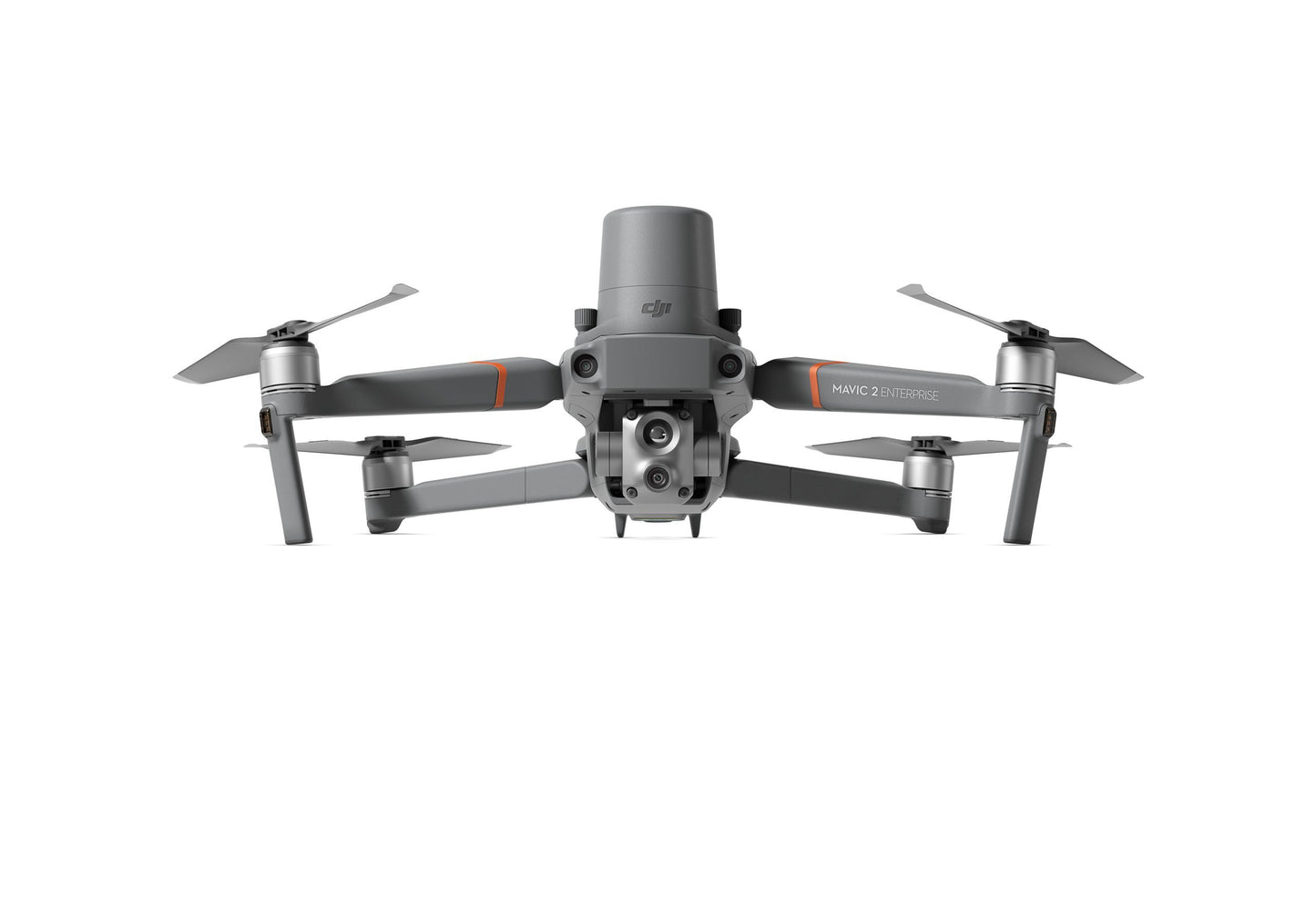

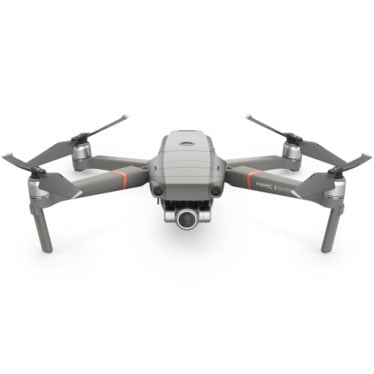

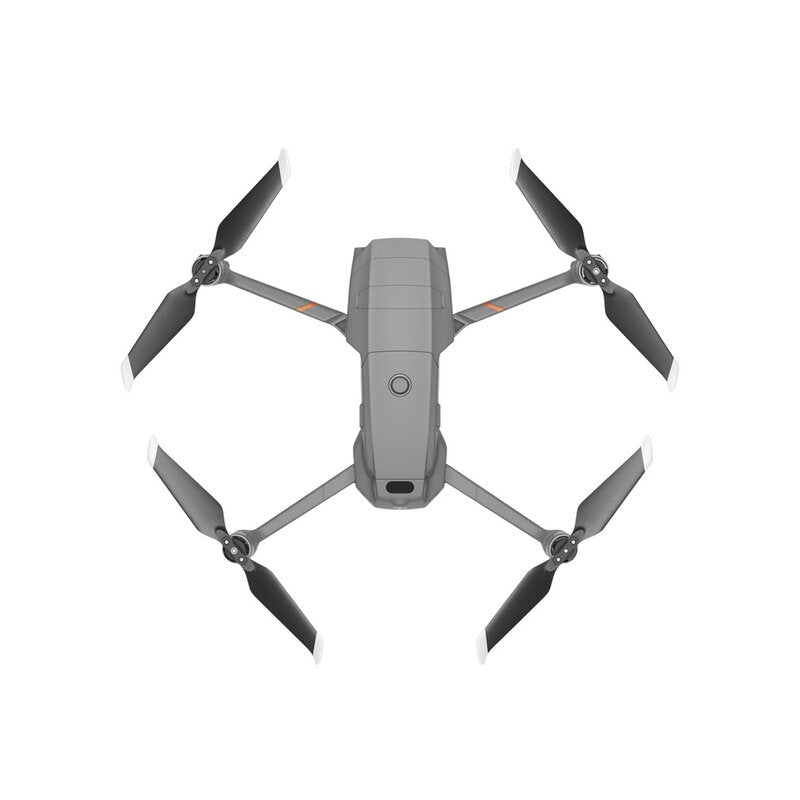

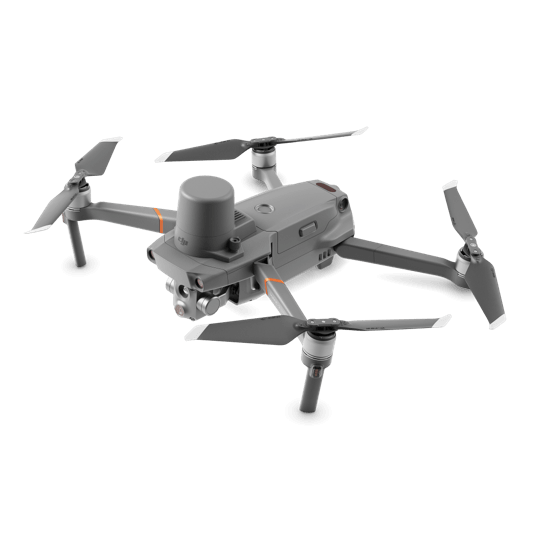

DJI Mavic 2 Dual Enterprise Advance

DJI’s New M2DA Provides Enhanced Thermal Vision & Precision For Critical Drone Operations. For Critical Drone Operations. -Powerful Imaging with Advanced Sensors. -Centimeter-Level Positioning System. -Strong Data Security and Enhanced Flight Safety. -Modular Accessories to Enhance Mission Productivity

Capture precise details in any mission with the exclusive Mavic 2 Enterprise Advanced – a highly adaptable yet dense tool that packs a whole lot of performance upgrades. With high-resolution thermal and visual cameras, the M2EA supports up to 32× digital zoom and is capable of centimeter-level positioning accuracy with the RTK module.Expand your vision with advanced dual-cameras

High-resolution Thermal

Make excellent decisions by swiftly identifying objects onsite using the M2EA’s integrated high-resolution thermal sensor, which supports Spot Meter and Area Measurement.

-640 × 512 Thermal Resolution

-30Hz Frame Rate

-16× Zoom

-±2 °C Temperature Measurement Precesion

Zoom in to Stay Safe

Capture vivid images and videos from a safe distance. The M2EA’s high-resolution visual camera supports ultra zoom, making sure that no detail is missed.

-48MP Visual Camera

-1/2” CMOS Sensor

-4× Lossless Zoom

-32× Digital Zoom

-Dual-Vision at Your Service

Tap to switch between visual, thermal, or split-view feeds for various project needs.

Dense Yet Powerful

Achieve centimeter-level precision using the M2EA with the RTK Module3. Make up to 240 waypoints to conduct automated, detailed inspection missions in difficult environments.

Maximum Flexibility

The lightweight and portable M2EA can take off in less than a minute. Thanks to faster ascent and descent speed, you can zip through challenging operating environments.

Applications:
-Firefighting
-Swiftly find victims, identify hot spots, and screen for fire risks to draft targeted rescue plans while keeping personnel safe.

Search and Rescue:
-Scan search areas to find helpless persons and swiftly send off rescue teams.

Law Enforcement:
-Gain critical intel in conflicts or emergencies to make well timed and excellent decisions without putting teams in danger.

Power Inspection:
-Pinpoint defects and find risks on equipment to successfully monitor operations and enhance efficiency in inspection and maintenance.

Environmental Protection:
-Keeps track of the changes in the environment to facilitate wildlife protection.

Mavic 2 Enterprise Advanced Specs:

-Aircraft
-Takeoff Weight (Without Accessories)
-909g

Max Takeoff Weight:
-1100g
-Dimensions (L×W×H)
-Folded: 214×91×84mm
-Unfolded: 322×242×84mm
-Unfolded+Spotlight: 322×242×114mm
-Unfolded+Beacon: 322×242×101mm
-Unfolded+Speaker: 322×242×140mm
-Unfolded+RTK Module: 322x242x125mm

Diagonal Distance:
-354 mm

Max Ascent Speed:
-6 m/s (S-mode)
-5 m/s (P-mode)
-4 m/s (S-mode with accessories)
-4 m/s (P-mode with accessories)

Max Descent Speed:
-Descend Vertically
-5 m/s (S-mode)
-4 m/s (P-mode)

Tilt:
-7 m/s (S-mode)
-4 m/s (P-mode)

Max Speed:
-72 kph (S-mode, without wind)
-50 kph (P-mode, without wind)
-Max Service Ceiling Above Sea Level
-6000 m

Max Flight Time:
-31 min (measured while flying at 25 kph in windless conditions)
-28 min (RTK module attached)
-29 min (with beacon turned on)
-30 min (with beacon turned off)
-24 min (with spotlight turned on)
-28 min (with spotlight turned off)
-27 min (with speaker turned on)
-28 min (with speaker turned off)

Max Wind Speed Resistance:
-10 m/s (scale 5)

Max Tilt Angle:
-35°(S-mode, with remote controller)
-25°(P-mode)

Max Angular Velocity:
-200°/s (S-mode)
-100°/s (P-mode)

Operating Temperature:
-10° to 40° C
-GNSS
-GPS+GLONASS

Hovering Accuracy Range:
Vertical:
-± 0.1 m (with RTK)
-± 0.1 m (with Vision Positioning)
-± 0.5 m (with GPS Positioning)

Horizontal:
-± 0.1 m (with RTK)
-± 0.3 m (with Vision Positioning)
-± 1.5 m (with GPS Positioning)

Operating Frequency:
-2.400-2.4835 GHz
-5.725-5.850 GHz

Transmitter Power (EIRP):
-2.400 - 2.4835 GHz
-FCC: ≤26 dBm
-CE: ≤20 dBm
-SRRC: ≤20 dBm
-MIC: ≤20 dBm
-5.725 - 5.850 GHz
-FCC: ≤26 dBm
-CE: ≤14 dBm
-SRRC: ≤26 dBm

Internal Storage:
-24 GB
-M2EA Thermal Camera

Sensor:
-Uncooled VOx Microbolometer
-Focal Length
-Approx. 9mm
-35 mm format equivalent: Approx. 38mm

Sensor Resolution:
-640×512 @30Hz

Digital Zoom:
-16 ×

Pixel Pitch:
-12 μm

Spectral Band:
-8-14 μm

Photo Format:
-R-JPEG

Video Format:
-MP4

Metering Method:
-Spot Meter, Area Measurement
-FFC
-Auto/Manual
-M2EA Visual Camera

Sensor:
-1/2” CMOS, Effective Pixels: 48 M

Lens:
-FOV: 84°
-35 mm format equivalent: 24 mm
Aperture: f/2.8
-Focus: 1 m to ∞

ISO Range:
-Video: 100-12800 (auto)
-Photos: 100-1600 (auto)

Digital Zoom:
-32×

Max Image Size:
-8000×6000
-Still Photography Modes
-Single Shot Interval: 2/3/5/7/10/15/20/30/60 s
-Panorama: Sphere
-Video Resolution
-3840×2160@30fps
-1920×1080@30fps

Photo Format:
-JPEG

Video Format:
-MP4
-Gimbal

Mechanical Range:
-Tilt: -135°- +45°
-Pan: -100°- +100°

Controllable Range:
-Tilt: -90°- +30°
-Pan: -75°- +75°

Stabilization:
-3-axis (tilt, roll, pan)

Max control speed:
-120°/s

Angular Vibration Range:
-±0.005°
-Sensing System

Sensing System

Omnidirectional Obstacle Sensing[1]

Forward:
-Precision Measurement Range: 0.5 - 20 m
-Detectable Range: 20 - 40 m
-Effective Sensing Speed: ≤ 14m/s
-FOV: Horizontal: 40°, Vertical: 70°

Backward:
-Precision Measurement Range: 0.5 - 16 m
-Detectable Range: 16 - 32 m
-Effective Sensing Speed: ≤ 12m/s
-FOV: Horizontal: 60°, Vertical: 77°

Upward:
-Precision Measurement Range: 0.1-8 m

Downward:
-Precision Measurement Range: 0.5 -11m
-Detectable Range: 11-22 m

Sides:
-Precision Measurement Range: 0.5 - 10 m
-Effective Sensing Speed: ≤ 8m/s
-FOV: Horizontal: 80°, Vertical: 65°
-Operating Environment

Forward, Backward and Sides:
-Surface with clear pattern and adequate lighting (lux > 15)
-Upward: Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)
-Downward: Surface with clear pattern and adequate lighting (lux > 15)
-Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
-Remote Controller

Operating Frequency:
-2.400 - 2.483 GHz
-5.725 - 5.850 GHz
Max Transmission Distance (unobstructed, free of interference):
-2.400 - 2.483 GHz 5.725 - 5.850 GHz
-FCC: 10000m
-CE: 6000m
-SRRC: 6000m
-MIC: 6000m
-Transmission Power (EIRP)
-2.400-2.4835 GHz：
-25.5 dBm（FCC） 18.5 dBm（CE）19 dBm（SRRC） 18.5 dBm（MIC）
-5.725-5.850 GHz：
-25.5 dBm（FCC） 12.5 dBm（CE）18.5 dBm（SRRC）

Storage:
-ROM 16GB + microSD Extensible Storage

Video Output Port:
-HDMI Port

Built-in Battery:
-Type: 18650 Li-Po (5000 mAh @ 7.2 V）
-Charging Mode: Charged with USB charger at 12V/2A
-Rated Power 15 W
-Charging time: 2 hr (with a USB charger at 12V/2A)
-Operating Current/Voltage
-1800mA ⎓ 3.83V

Battery Life:
-Built-in Battery Approx. 2.5 hr
-Operating Temperature
-20° C - 40° C

RC Size:
-Folded without Joystick: 177.5 x 121.3 x 40 mm
-Unfolded with Joystick: 177.5 x 181 x 60 mm

Weight:
-Approx. 630 g
-Intelligent Flight Battery
-Main Link: 17.6V ⎓ 3.41A or 17.0V⎓3.53A
-USB: 5.0 V ⎓ 2.0 A
-RTK Module

Dimensions:
-69 mm x 69 mm x 59mm

Connections:
-Micro USB Port
-RTK Positioning Precision
-In RTK FIX
-1cm+1ppm (Horizontal)
-1.5cm+1 ppm (Vertical)
-M2EA Spotlight

Dimensions:
-68×60×41mm

Connections:
-Micro USB Port

Operating Range:
-30 m

Power:
-Max 26W

Illuminance:
-FOV17°, Max: 11lux @ 30m Straight
-Intelligent Flight Battery

Capacity:
-3850 mAh
-Voltage
15.4V

Max Charging Voltage:
-17.6V

Battery Type:
-LiPo

Energy:
-59.29 Wh

Net Weight:
-297g

Charging Temperature:
-5℃ - 40℃

Operating Temperature Range:
-10℃ - 40℃

Heating Methods:
-Manual Heating, Auto Heating
-Heating Temperature
-20℃ - 6℃

Heating duration:
-500s (Max)

Heating Power:
-55W (Max)

Charging Time:

-90 mins

Max Charging Power;
-80W
-M2EA Beacon

Dimensions:
-68mm×40mm×27.8mm

Connections:
-Micro USB Port
-Power
-Avg. 1.6W

Controllable Range:
-5000 m

Light intensity:
-Min Angle: 55 cd
-Light intensity: 157cd
APP / Live View

Video Transmission System:
-OcuSync 2.0
-Mobile App
-DJI PILOT(Android Version)
-Live View Quality

Remote Controller:
-720p@30fps / 1080p@30fps
-Max Live View Bitrate
-40Mbps
-Latency
-120 - 130 ms

Required Operating System:
-iOS 10.0 or later / Android 5.0 or later
-M2EA Speaker

Dimensions:
-68×55×65 mm

Connections:
-Micro USB Port
-Power
-Max 10W
-Decibel
-100 db @ 1 meter distance
Max Bitrate
-16kbps
-SD Cards

Supported SD Cards
Micro SD™
Supports a microSD with capacity of up to 128 GB.
A UHS-I Speed Grade 3 rating microSD card is required.
Footnotes
[1] Omnidirectional Obstacle Sensing incorporates left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in ActiveTrack or Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only operates in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when ActiveTrack or Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety
