HyperDrive HD USB4 Mobile Dock - Hyper HD USB4 Mobile Dock (Single 8K 30Hz Display Support..Easily connect up a single external display at 8K 30Hz with the flexibility of HDMI 2.1 or DP 1.4. USB-C 100W PD Passthrough Quickly charge your host computer w...

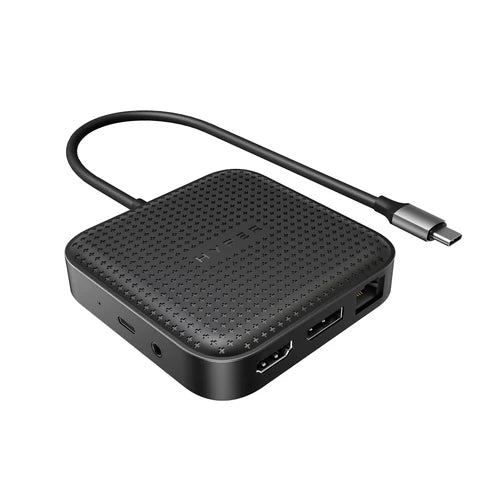

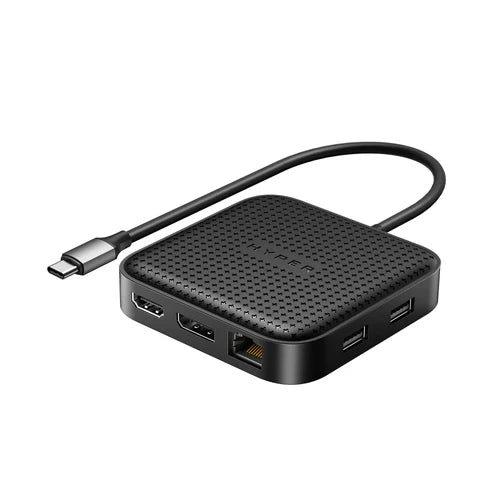

The HyperDrive Dual Monitor USB4 Mobile Dock is a slim, portable USB4 docking station that features integrated HDMI 2.1 and DisplayPort 1.4 for single 8K 30Hz display support on SST and MST devices, and is capable of dual 4K 60Hz display support on MST enabled devices.

It also provides the ability to quickly charge a host device with USB-C 85W power delivery while giving 2x USB-A 10Gbps ports for blazing fast file transfers and supplementary peripheral support. Compatible with USB4 devices, macOS, Thunderbolt 4 and 3 Windows PCs, and Thunderbolt docking stations.

Dual Extended Display Support

Easily connect up to 2 external displays at 4K 60Hz with the flexibility of HDMI 2.1 or DP 1.4.
Up to 2 Extended Displays are supported on Windows and Chrome OS only as MST (Multi-Stream Transport) is required. macOS does not support MST. 4K 60Hz requires that your USB-C port supports DP 1.4 and DSC.

Single 8K 30Hz Display Support

Easily connect a single external display at 8K 30Hz with the flexibility of HDMI 2.1 or DP 1.4.

USB-C 85W PD Passthrough

Quickly charge your host computer with 85 watts of power when connected to an external 100W Power Delivery charger.

High-Speed USB-A

2x USB-A ports provide 10Gbps for transferring photos, files, or high-resolution HD movies in under 30 seconds.

Get 4X The Bandwidth

USB4 connectivity provides 4x downstream bandwidth at 40Gbps compared to USB-C Gen 2 10Gbps data transfer speeds.

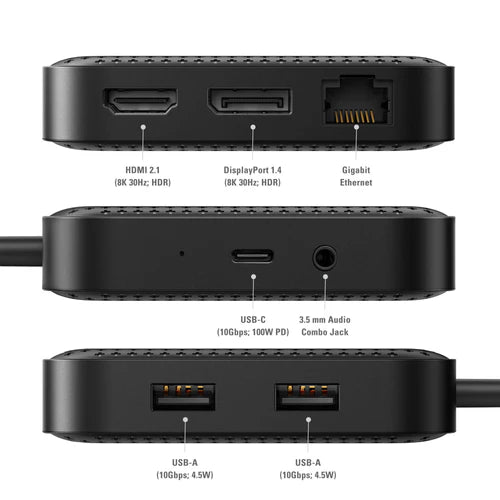

Ports

• HOST: USB4 (40Gbps; 85W PD Passthrough)
• HDMI 2.1 (8K 30Hz; HDR)
• DisplayPort 1.4 (8K 30Hz; HDR)
• USB-C (10Gbps; 100W PD*)
• USB-A (10Gbps; 4.5W)
• USB-A (10Gbps; 4.5W)
• 1 Gigabit Ethernet
• 3.5 mm Audio Combo Jack (96 kHz 24 bit)

Model

HD583

Dimensions

84.9 x 84.9 x 19.4mm
3.34" x 3.34" x 0.76”

Weight

109g / 3.84 oz / 0.24 lb

Certifications:

CE, UKCA, FCC, RCM, ICES003, PAHs, RoHS, REACH, WEEE, SOR, Prop65, TSCA

Warranty Length:

2 Years

Compatible Devices

• Windows OS laptop with Thunderbolt 3/4, USB4, USB 3.0 or later Type C with DP Alt-Mode
• Chrome OS laptop with Thunderbolt 3/4, USB4, USB 3.0 or later Type C with DP Alt-Mode
• MacBook Pro 2016 or Later
• MacBook Air 2018 or Later
• MacBook 2015, 2016
• iPad Pro 2018 or later
• iPad Air 2020 or later

Compatible Operating Systems

• macOS 10.16 or later: Yes
• Windows 8 or later: Yes
• Chrome OS: Yes
• Linux: Yes
• iPad OS: Yes
• Android: No

Monitor Support CapabilityMonitor AMonitor BExtended Monitors2Single Monitor (Max output)8K 30HzDual Monitor (Max output) 4K 60Hz4K 60HzTriple Monitor (Max output)
