PLANET One-Port 10/100/1000Mbps 802.3bt PoE++ Injector (ETA 2 TO 3 WEEKS)

Advanced 802.3bt PoE Network Solution

PLANET POE-175-95 is a 1-Port 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables.

It is designed specifically to meet the demand for growing higher power required network equipment such as:

• PTZ speed dome camera
• All-in-one touch PC
• Remote digital signage display
• Other network devices that need higher power to work normally

The POE-175-95 delivers the Ethernet digital data with 54V DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the POE-173S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.

95 Watts of Power over 4-pair UTP

Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1,2,3 and 6) or mid-span (Pins 4,5,7 and 8), it provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat.5e/Cat. 6 Ethernet cabling.

Dip Switch for PoE BT / UPoE / Legacy BT mode, built-in PoE Injector

The POE-175-95 provides power to those powered devices which do not fully follow the IEEE 802.3 af/at/bt standard. The UPoE and Legacy bt mode provide the PD with 60 to 95 watts power output voltage.

• BT mode: Powered devices that fully support IEEE 802.3 bt standards with output budget of 90W.
• UPoE mode: Powered devices that support Cisco UPoE standards or PoH standards with output budget 95W.
• Legacy BT Mode: PD devices that support capacitive or resistance electronic tag with output budget of 90W.

All-in-One and Compact Size Design

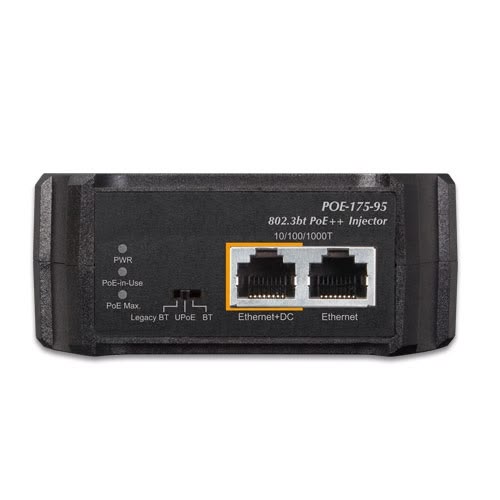

It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for business and home users to own it. Besides, the POE-175-95 comes in compact housing, and has a built-in internal power supply. On the side panel of the POE-175-95 features one 100-240V AC input socket, real-time LEDs (Power LED, PoE-in-Use LED and PoE Max LED) and two RJ45 ports -- Ethernet port and Ethernet+DC port. Simply plug in the Ethernet cables and AC power cord, and the POE-175-95 is ready to provide high-speed network communication and the 802.3bt PoE++ injector functions simultaneously with no need of software configuration.

Quick and Easy Cabling Installation for PoE Network Deployment

Backward compatible with both 802.3 af/at PoE standards, the POE-175-95 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-175-95 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.
