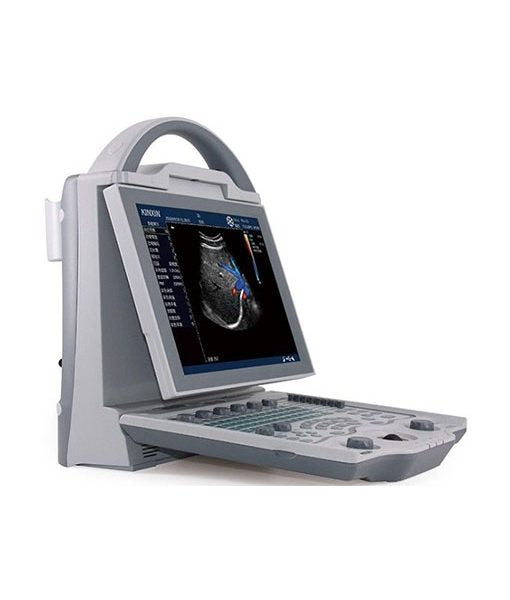

Portable Color Doppler Ultrasound DCU-12

  Standard Configuration:1)  Main unit:1 pc2) 3.5 MHz convex abdomen probe:1 pcYou can choose 1pc probe from below:1) 6.5 MHz trans-vaginal probe2) 7.5 MHz linear probe   Portable Color Doppler Ultrasound DCU12 Full Digital Color Doppler Ultrasound Scanner(Human) 1. Application:Leading image process technical and advanced and practical clinical solution method. Applicable...
-
+
R 93,199.00

Medical Equipment




Standard Configuration:
1)  Main unit:1 pc
2) 3.5 MHz convex abdomen probe:1 pc
You can choose 1pc probe from below:
1) 6.5 MHz trans-vaginal probe
2) 7.5 MHz linear probe



Portable Color Doppler Ultrasound

DCU12 Full Digital Color Doppler Ultrasound Scanner(Human)

1. Application:
Leading image process technical and advanced and practical clinical solution method. Applicable to a diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With the scalable design, upgrade continuously, fully meet the needs of clinical application extension.

2. Parameters:
A: Specification parameters:
1. Greyscale: 256 level
2. Color scale: 256 level
3. Display: 10.4’flicker-free high-resolution medical color LCD
4. Power: 100-240V, 1.2-0.6A    frequency: 50-60Hz
5. Adapter output: DC12.8V  3.0A
6. Power consumption: ≤100VA
7. Main unit size: 256*150*326(mm, Length*width*height)
8. Unit net weight: 4.5Kg(Accessories not included)

B: Multimedia and accessory equipment:
1. Video recorder
2. I-station integral workstation, realize image storage, report form, and cloud print
3. U flash disk (file management, software upgrade, and one-key storage) and DICOM port, convenient for data management and available to removal transmission.
4. Dual-mode TV output: PAL/NTSC

C: Probe port: Two enabled probe ports, automatic identification technology, available to optional probe configuration.

3. Operation Mode:
B,B/B,4B   M,B/M    CFM     PDI     PW    THI

4. Ultrasonic imaging technology:
High precise digital multi-beam formator
Dynamic frequency fusion imaging
High precise delay dynamic receiving focusing
Ultra-wideband image technique
Adaptive color artifact removal technique
Adaptive vessel imaging
Adaptive Doppler image technique
THL tissue harmonic imaging technology

5. Measurement report:
OB measurement report, GYN measurement report, cardiac measurement report, urology measurement report and other measurement reports, automatically store the measurement result and generate a report.

Standard Configuration:
1 Main unit:1 pc
2 3.5 MHz convex abdomen probe:1 pc
3 You can choose the 1pc probe from below:
>6.5 MHz transvaginal probe
> 7.5 MHz linear probe
4 Workstation software: 1 set
5 Reticle:1 pc

The Portable Color Doppler Ultrasound DCU-12 is far and away, one of our most popular items. People can't seem to get enough of it.

Inventory Last Updated: Dec 05, 2021
