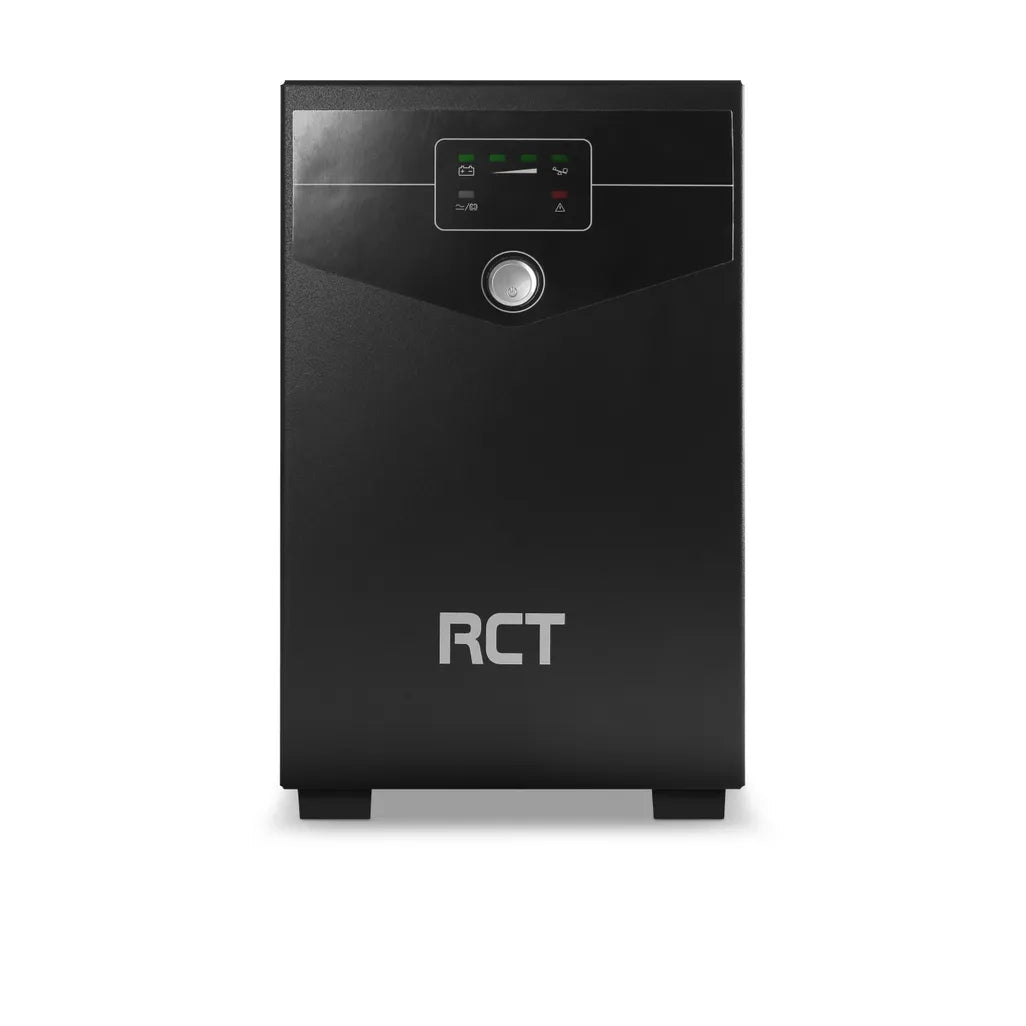

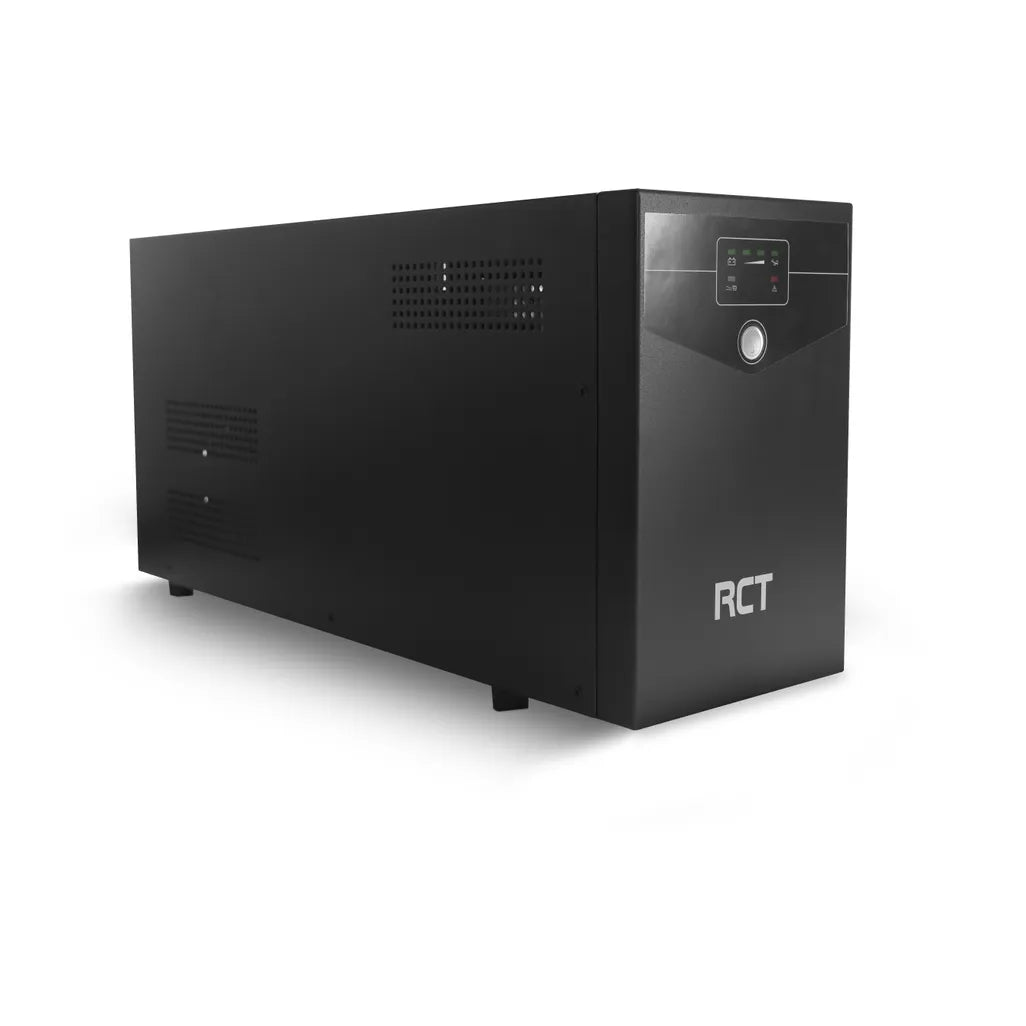

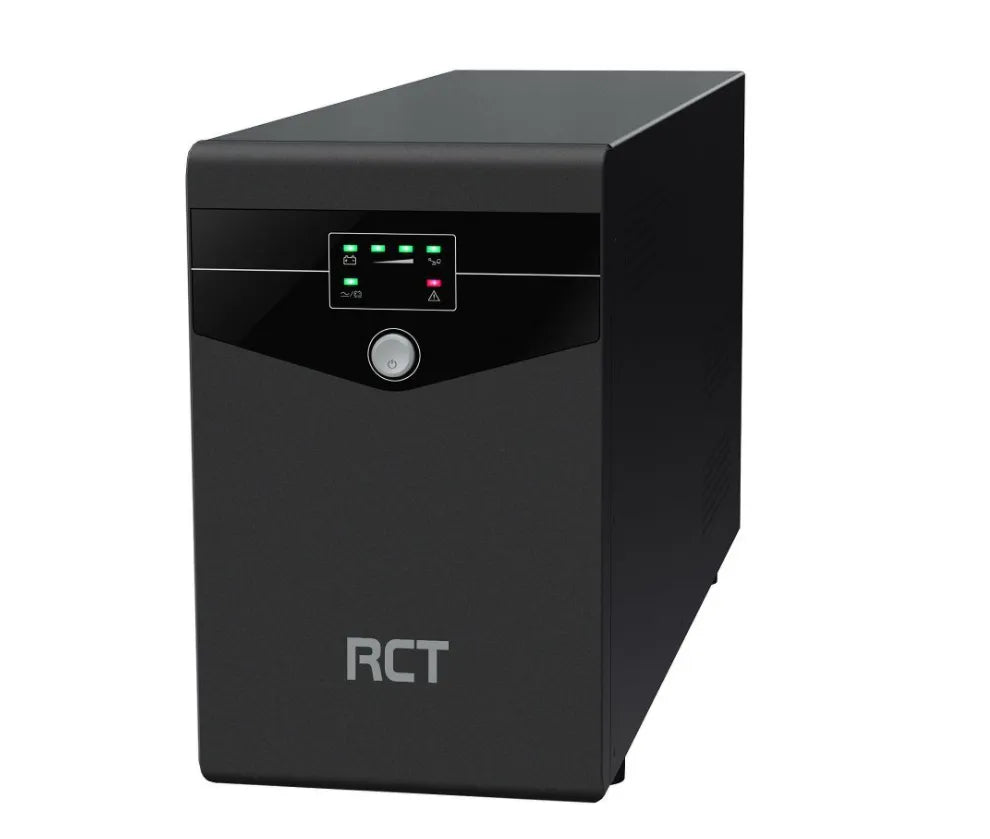

RCT 3000VAS Line-Interactive UPS

RCT 3000VAS Line-Interactive UPS
RCT-3000VAS

• Compact size
• Excellent microprocessor control guarantees high reliability
• Boost and buck AVR for voltage stabilization
• Auto restart while AC is recovering
• Off-mode charging
• Cold start function

Specifications
MODEL
3000VA / 1800W Capacity

INPUT
VOLTAGE RANGE:
85-145 VAC or 170-280 VAC
FREQUENCY RANGE:
60/50 HZ (Auto Sensing)

OUTPUT
OUTPUT VOLTAGE:
220/230/240 VAC
AC VOLTAGE REGULATION (Batt. Mode)
FREQUENCY RANGE:
10%
FREQUENCY RANGE (Batt. Mode):
60 Hz or 50 Hz 1 Hz
TRANSFER TIME:
Typical 2-6 ms
WAVEFORM (Batt. Mode):
Simulated Sinewave

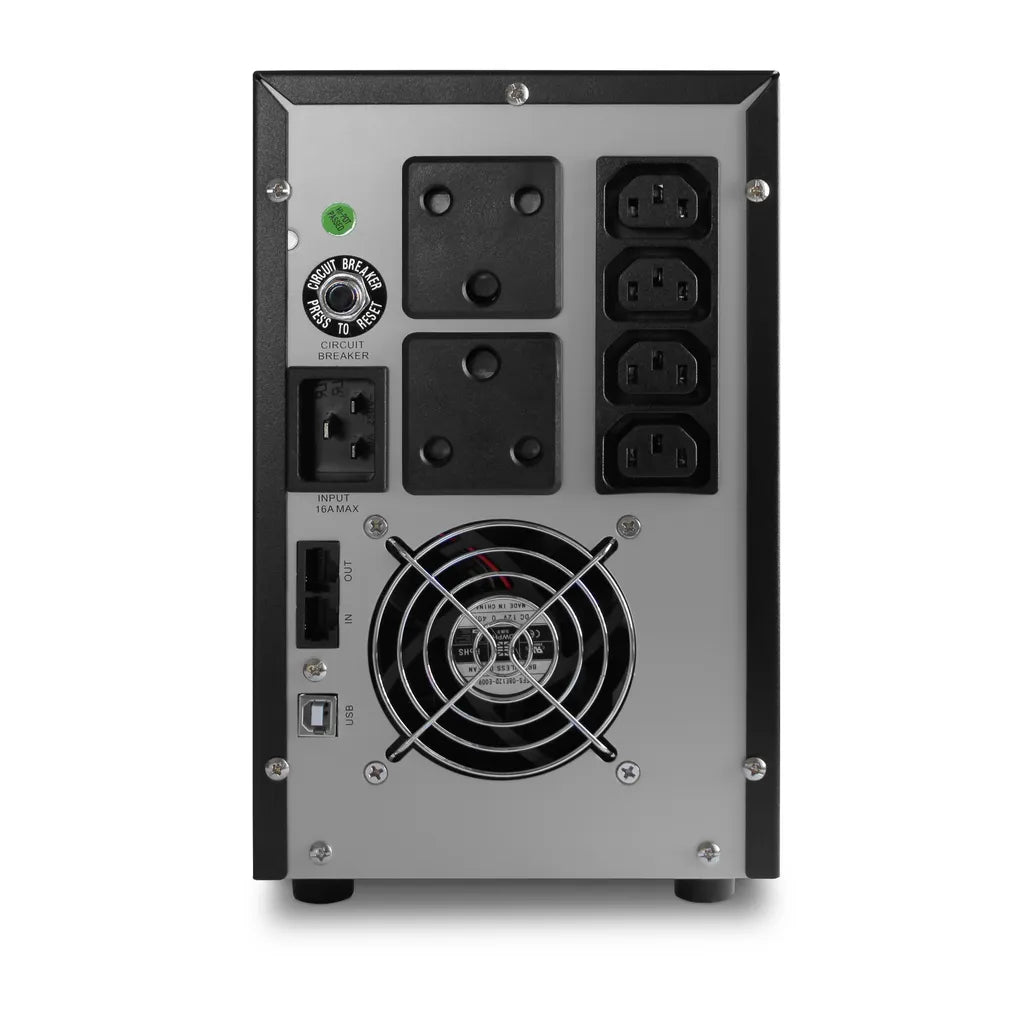

PORTS
2 x SA PLUGS
4 x Output Receptacles
1 x Circle Breaker
1 x AC Input
1 x RJ-45 Surge Protection
1 x USB Port

BATTERY
BATTERY TYPE & NUMBER:
12 V/9Ah x 4
TYPICAL RECHARGE TIME:
6 Hours Recover to 90% Capacity

ALARM
BATTERY MODE:
Sounding Every 10 Seconds
LOW BATTERY:
Sounding Every 10 Seconds
OVERLOAD:
Sounding Every 0.5 Seconds
FAULT:
Continuously Sounding

INDICATORS
AC MODE:
Green Lighting
BATTERY MODE:
Green Flashing
FAULT:
Red Lighting

FULL PROTECTION:
Overload, Discharge, Overcharge Protection

ENVIRONMENT:
Humidity: 0-90 % RH @ 0- 40 C (non-condensing)
Noise Level: Less than 40dB

APPROXIMATE RUNTIME
30W : 7 HOURS & 30 MINUTES
50W : 5 HOURS
100W : 2 HOURS & 30 MINUTES
150W : 1 HOUR 30 MINUTES
200W : 1 HOUR 10 MINUTES

WARRANTY
2 Years

What's in the box
1 X UPS
