RS PRO RS5500, Insulation Tester, 1000V, 2GΩ, CAT III 1000V

  RS Pro RS5500 Insulation & Continuity Tester Insulation resistance testers are used to ensure the insulation of wiring is safe, or undamaged after electrical work has been carried out. Testers or megohmmeters are vital in preventing tripped fuses, electrical equipment and instrument breakdown, risk of electric shock or fires...
-
+
R 2,699.00

INDUSTRIAL ACCESSORIES



RS Pro RS5500 Insulation & Continuity Tester

Insulation resistance testers are used to ensure the insulation of wiring is safe, or undamaged after electrical work has been carried out. Testers or megohmmeters are vital in preventing tripped fuses, electrical equipment and instrument breakdown, risk of electric shock or fires



RS5500 is a great value digital insulation tester and continuity tester complying with IEC10101, CAT III for measurements performed in building installations. It features a compact light weight design for continuity and portability. Featuring double-moulded plastic housing providing ultimate protection from harsh environments. Also provided with this purchase are test leads, 6 x AA 1.5 V batteries, a plastic carrying case and user manual.

Features and Benefits:

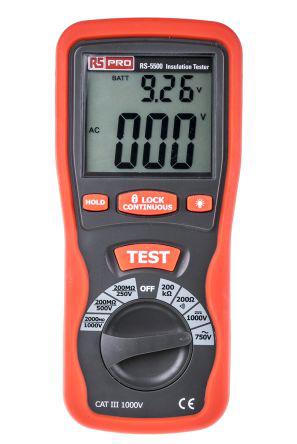

• Large dual display with backlight
• Triple insulation voltage Test Ranges: 200 MΩ/250 V; 200 MΩ/500 V; 2000 MΩ/1000 V
•AC Voltage (40Hz to 400Hz)
• 200 mA short current continuity range
• Test Hold function for easy operation
• Over range indication
• Low battery indication
• Double-moulded plastic housing
•Weight approximately 700 g includes battery

Dimensions 200 mm x 92 mm x 50 mm


Standards

IEC10101, CAT III 1000 V

Supplied with

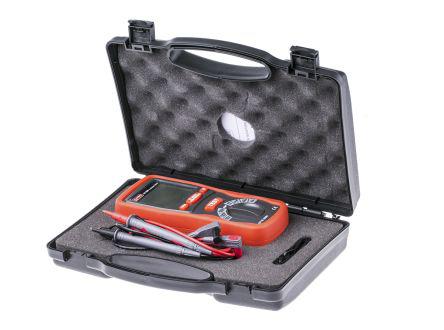

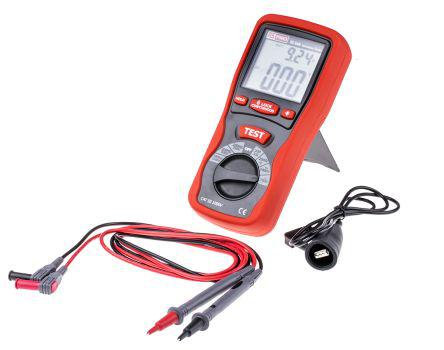

Test leads, AA 1.5 V batteries x6, plastic carrying case and user manual



RS Pro Insulation Testers



Specification
Attribute Value
Tester Type Insulation Tester
Minimum Test Voltage 250V
Maximum Test Voltage 1000V
Maximum Insulation Resistance Measurement 2GΩ
Display Type LCD
Test Current ≤200mA
Minimum Operating Temperature 0°C
Maximum Operating Temperature +40°C
Power Source Battery
Safety Category Level CAT III
Safety Category Voltage 1000V
Safety Category CAT III 1000V
Weight 582g
Model Number p RS5500
Length 92mm
Width 50mm
Height 200mm
Dimensions 92 x 50 x 200mm
Battery Type AA

7 Available in South Africa for same day despatch or collection. (Delivery Terms & Conditions Apply)
193 Available from UK/Europe in 4–6 working days (Covid-19 flight delays could impact quoted delivery times) for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)






The RS PRO RS5500, Insulation Tester, 1000V, 2GΩ, CAT III 1000V is a sensational customer favorite, and we hope you like it just as much.

Inventory Last Updated: Aug 03, 2021
