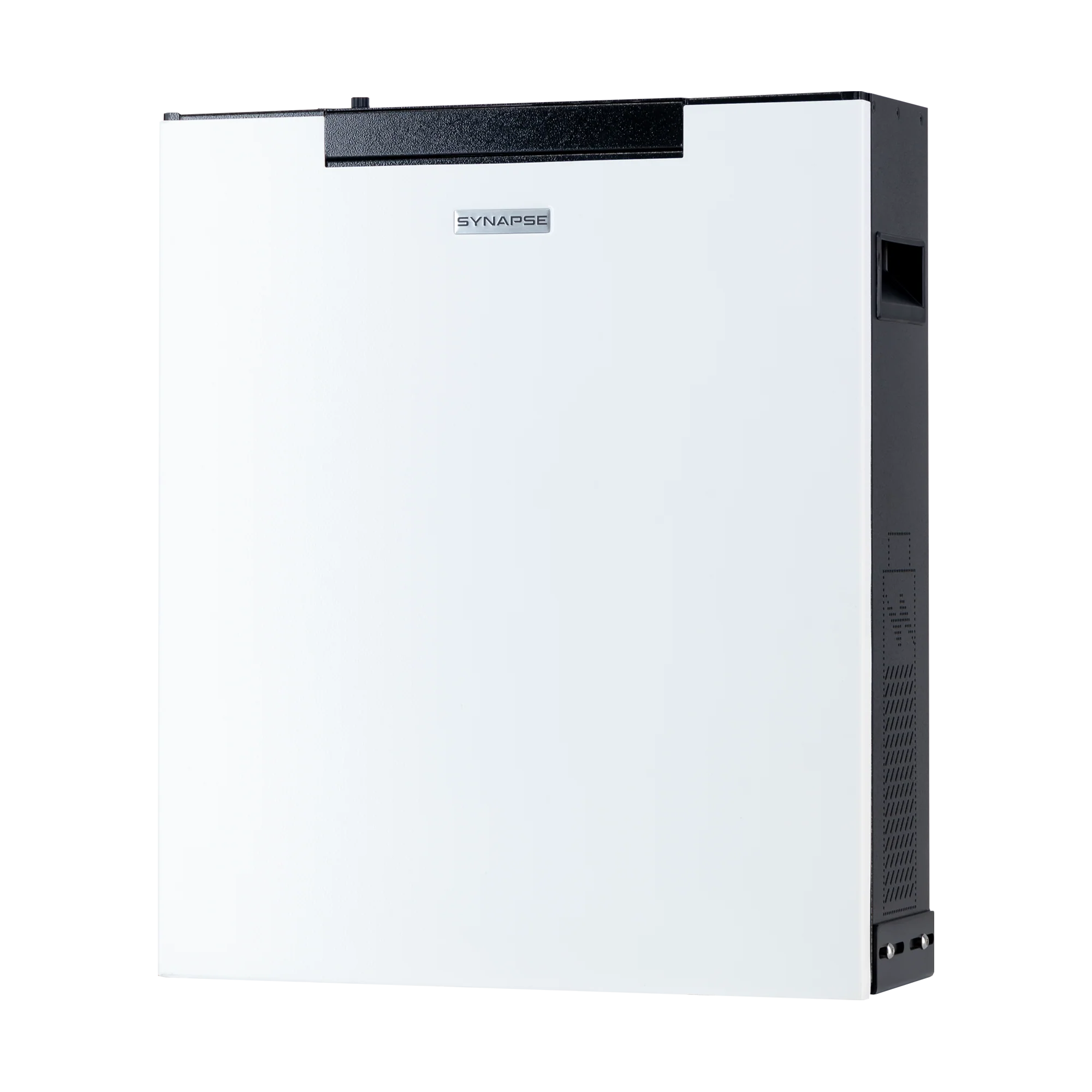

Synapse Lithium battery, 5kW

The SYNAPSE 5KO - LV is a high-performance low-voltage lithium iron phosphate (LiFePO₄) battery designed for energy storage applications. With a nominal voltage of 51.2Vdc and a 5kW power output, it supports up to 15 parallel modules for scalable capacity. Featuring advanced BMS protection, real-time balancing, and adaptive charge/discharge logic, it ensures long-term reliability and safety. The unit is IP30-rated for indoor use, with multiple communication interfaces, including RS485, CAN, RS232, Wi-Fi, and Bluetooth (via an external device).

Key Features

• High Energy Density: 5kW output, 4.8kWh capacity
• Scalable: Up to 15 modules in parallel (max 5 stacked)
• Advanced BMS: UV-OV protection, real-time balancing, MOSFET pre-charge
• Adaptive Charging: 3-step logic with CAN-based control
• Remote Monitoring: Optional WeCo App (Android/iOS)
• Multiple Interfaces: RS485, CAN, RS232, Wi-Fi, Bluetooth (external)
• Long Cycle Life: 6000+ cycles @ 90% DoD
• High Safety: Three protection levels, thermal management
• Warranty: 6000 cycles @ 90% DoD or 10 years
