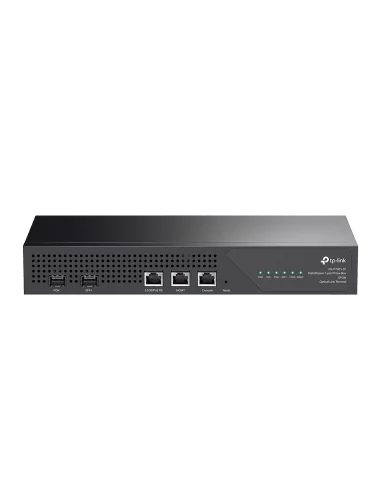

TP-Link 1-port GPON OLT | DS-P7001-01

The TP-Link DS-P7001-01 1-Port GPON OLT is a compact, cost-effective solution for small-scale fibre deployments in South Africa. Supporting up to 128 ONTs with a 1:128 splitting ratio and a range of up to 60km, it is ideal for small businesses and home offices requiring reliable high-bandwidth connectivity. This 11.6-inch rack-mountable unit features both a 10G SFP+ and a 2.5G RJ45 uplink port, offering flexible integration into various network environments. Power options include DC input and 802.3at PoE, providing deployment versatility. Enhanced network stability is delivered through advanced Layer 2 and Layer 3 functions such as static routing and IGMP snooping. Centralised management is enabled via the DeltaStream PON Management System (DPMS), SNMP, CLI, and an intuitive Web UI for streamlined network administration.

Key features

• Supports up to 128 ONTs with a 1:128 splitting ratio and a 60km range
• 10G SFP+ and 2.5G RJ45 uplink ports for flexible backhaul options
• Compact 11.6-inch rack-mountable design
• DC and 802.3at PoE power options
• Advanced Layer 2/3 features, including static routing and IGMP snooping
• DeltaStream PON Management System (DPMS) for simplified network control
• Supports SNMP, CLI, and Web UI for centralised management
• Ideal for small-scale fibre rollouts in business and home environments



  • Key Features

    1x GPON port, 1x 10Gbps SFP+ uplink, 1x 2.5 GBE uplink, 1x RJ45 Console, 1x RJ45 MGMT
