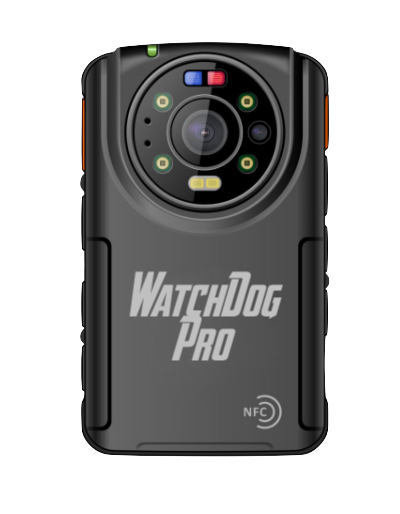

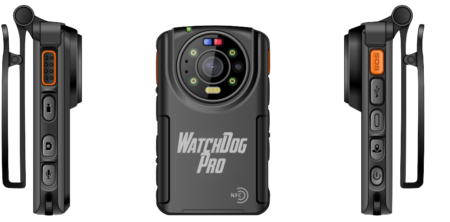

WatchDog PRO Live

WatchDog PRO Live is the high-end 4G LTE Full HD Body Worn Camera tailor-made for law enforcement and high security applications. With IP67 waterproof, shock and vibration-resistant, dust-proof design, the outstanding performance delivers clear and sharp images in extremely low light conditions.

Key Features ⚫ 4G LTE Body Worn Camera ⚫ Live H.264 video streaming ⚫ 1080P FHD Video recording ⚫ Dual 4G SIM card support (Manual Switching) ⚫ Triple camera support ⚫ Triple mic noise reduction, 3W speaker ⚫ External 720P/1080P camera support ⚫ FOV:120  (diagonal), 107 (horizontal) ⚫ IP67 waterproof and dust-proof ⚫ 3.5” IPS Touch Screen (Corning Gorilla III), support glove-wearing operation ⚫ 16MP resolution image shooting ⚫ 10 meters IR Night Vision ⚫ GPS, WIFI (2.4G/5G), Bluetooth, NFC built-in ⚫ Dual video streaming supported ⚫ Shock & corrosion protection, 2M drop test ⚫ One-key SOS, Two-way audio, Group call ⚫ Data safety with encryption ⚫ Watermark function ⚫ WatchDog Client & Platform Server management

The WatchDog Pro requires a Stand-alone or Cloud-based Server to achieve real-time streaming via WIFI or a 4G
cellular network.
It’s the customer’s responsibility to provide the server of choice and the specifications is dependent on the
number of WatchDog Pro BWC’s intended to stream simultaneously. The security and maintenance of this server
is the sole responsibility of the customer. Tecafrica Solutions will install and configure the Server software on behalf of the
customer to ensure the live stream is successful.
For applications that require 100+ WatchDog Pro BWC’s, the software developer will require remote access
(compulsory) to the customer’s server in order to upload and configure additional licenses to accommodate for
the total number of BWC’s required.
The Server specifications listed below are the minimum requirements and is dependent on the total number of
WatchDog Pro Body Worn Cameras intended to streaming simultaneously. It is highly recommended to source a
higher spec Server to prevent latency and speed constraints.
WatchDog Pro Server Specifications (Stand-alone Server) (up to 100 WatchDog Pro BWC’s)
CPU Model Intel E5-2600 or above
CPU Frequency 2.4GHz or above
CPU Core 4 Core or above
CPU Thread 4 Thread above
Memory 32GB DDR3 or above
Storage 1TB or above
Operating System Windows Server 2008 R2 Enterprise SP1, Windows Server 2012, Windows Server 2016
Internet Speed 50Mbps or above (dependent on total number of BWCs streaming simultaneously)
Internet Connection Fixed line Fibre with static IP (non-negotiable)
WatchDog Pro Cloud Server Specifications (up to 100 WatchDog Pro BWC’s)
CPU Model Inter E5-2600 or above
CPU Frequency 2.0GHz and above
CPU Core 4 Core / 8 Core
CPU Thread 8/16 Thread
Memory 32GB DDR4 and above
Storage 4TB*3
Operating System Windows server 2008 R2 Enterprise SP1, Windows server 2012, Windows server 2016
Network Card Speed 1000 Mbps
Bandwidth 500 Mbps
Recommendation: due to the high cost of data when live streaming audio/ video via the 4G cellular network, we
suggest streaming on demand or when an Alert/ Panic is received.
NB: Tecafrica Solutions does not provide, support or maintain the Stand-alone or Cloud-based server
