Alcovisor Mercury Alcohol Breathalyser

Professional-Grade Accuracy | Evidential Testing | Advanced Features

The Alcovisor Mercury is a high-performance, evidential-grade breathalyser designed for professional use. Featuring a platinum electrochemical fuel cell sensor—the same technology used in law enforcement devices—it delivers highly accurate and reliable alcohol detection.

With both passive and direct sampling modes, the Mercury provides flexible testing options, making it ideal for workplace testing, law enforcement, and safety compliance environments.

Key Features

• Police-grade fuel cell sensor for precise and consistent readings
• Dual sampling modes – passive and direct breath testing
• Multi-unit display – supports %BAC, mg/L, µg/100ml, mg/100ml, and more
• Large 2.4” TFT colour touchscreen for easy operation
• Hygienic mouthpiece ejection system (no saliva contact)
• Built-in LED guidance light for mouthpiece insertion
• 16,000 test memory with full data logging
• Adjustable alcohol limits & alerts
• Optional GPS tracking capability
• Bluetooth wireless printer support for instant test reports

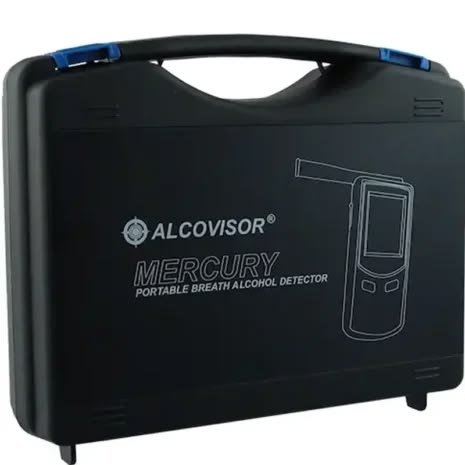

• Robust carry case included for portability

Printing & Reporting

The included wireless Bluetooth thermal printer (WPT-2B) allows:

• Instant on-site printing of test results
• Retrieval and printing from stored memory
• Reliable documentation for evidential purposes

Compliance & Certification

• DOT / NHTSA Approved (Evidential Breath Tester standard)
• CE Certified
• RoHS Compliant

Technical Specifications

• Sensor: Fuel Cell (Electrochemical)
• Detection Range: 0 – 175 µg/100mL BrAC
• Accuracy:
  • 0 – 0.10% BrAC: ±5%
  • 0.10 – 0.15% BrAC: ±8%

  • 0.15% BrAC: ±10%

• Display: 2.4” TFT Colour Touch Screen
• Battery: 4 × AA Alkaline Batteries
• Battery Life: 3,000+ tests
• Memory: 16,000 test records
• Operating Temp: -10°C to 50°C
• Storage Temp: -25°C to 70°C
• Weight: 160g (excluding batteries)
• Connectivity: USB
• Power Options: AC adapter or car adapter (optional)

Ideal Applications

• Workplace alcohol testing
• Law enforcement & roadside checks
• Mining, construction, and industrial safety
• Security and access control environments
