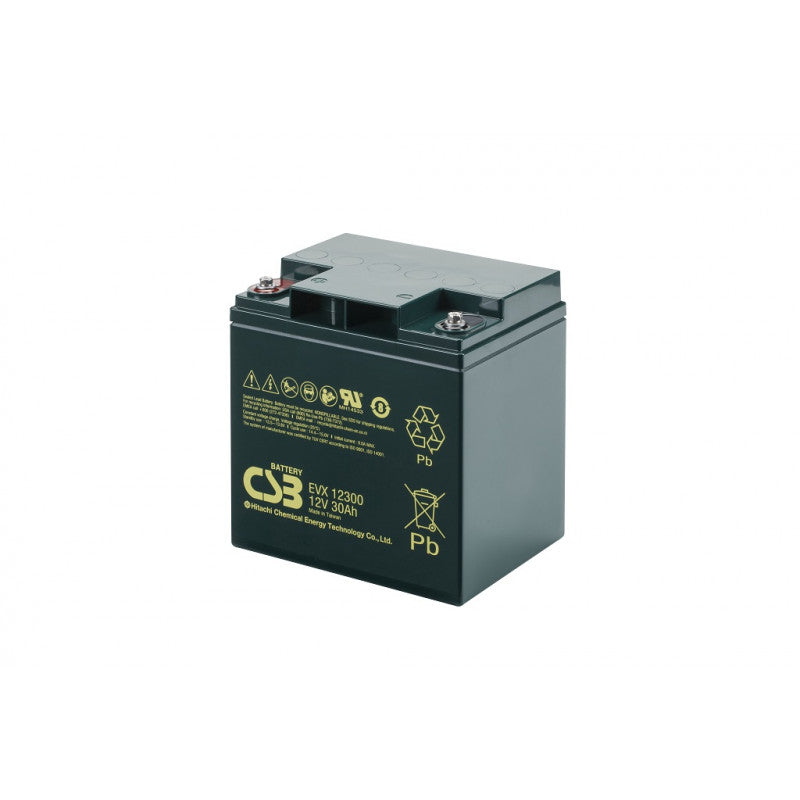

CSB 12 Volt 30Ah Deep Cycle Traction Electric Vehicle VRLA AGM Battery EVX12300

CSB 12 Volt 30Ah Deep Cycle Traction Electric Vehicle VRLA AGM Battery EVX12300

Regular price R 1,599.00 ZAR
Regular price Sale price R 1,599.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.







Main features as follows:

EVX means Electric Vehicle X (the meaning of Roman numeral X is satisfactory and plentiful). This series is a modern hi-tech energy application product.



  • The EVX battery is especially suited for electric vehicle and hand tools systems.
  • When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
  • With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.
  • With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
  • Long life, low self-discharge rate and high reliability.
  • It has safety, low resistance so recharge is easy and energy output is more remarkable.
  • Cycle use.
  • High rate discharge construction.
  • Deep discharge recoverability.
  • Batteries are strictly tested by our patented computer charge/discharge system.
  • ISO9001, 14001, OHSMS 18001 certified.
  • UL recognized components under UL 1989 (file number MH14533).
  • Complies with IATA/ICAO Special Provision A67 for air transport.
  • Classified per MG Amendment 27 as a non-hazardous material for water transport.
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.


Applications


Cycle Use:


  • Electric Vehicles
  • Golf carts

  • Portable telephone sets

  • Portable lighting equipment

  • Power tools, lawn mowers, vacuum cleaners

  • Portable measuring equipment

  • Portable VTR/TV, tape recorders and radios

  • Portable personal computers and processors



Solar Cell Power Generation:

  • Street lighting

  • Portable power supply
  • Water pumping stations

  • Rural power systems




Test result might be different under various conditions. Please contact our regional sales managers for further information.


Specifications:

Cells Per Unit 6
Voltage Per Unit 12 V
Capacity 30 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
Weight Approx. 10.4kg. (22.92 lbs.)
Maximum Discharge Current 400A (5 sec)
Internal Resistance Approx. Approx. 7.9 mΩ
Operating Temperature Range Discharge:-15℃~50℃(5°F~122°F)
Charge:-15℃~40℃(5°F~104°F)
Storage:-15℃~40℃(5°F~104°F)
Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 5°F)
Float Charging Voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit 9.0A
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
Terminal I1-Thread lead alloy recessed terminal to accept M5 bolt
Container Material ABS(UL94-HB)
