D-RTK 2 High Precision GNSS Mobile Station

Price
R 35,499
Tax included. Shipping calculated at checkout.
Only 2 left in stock!

Frequently Bought Together

Pickup available at FANCOURT OFFICE PARK

Usually ready in 2-4 days

View store information
Product Information

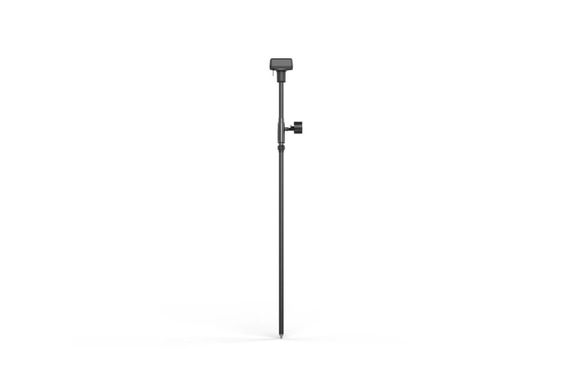

DJI D-RTK 2 High Precision GNSS Mobile Station

The DJI D-RTK 2 High Precision GNSS Mobile Station provides highly accurate positioning data for professional drone operations, delivering centimeter-level RTK positioning accuracy and real-time differential corrections.

Designed for demanding surveying, mapping, inspection and other precision applications, the D-RTK 2 supports multiple global satellite navigation systems and can provide positioning corrections to multiple compatible drones simultaneously.

Key Features

  • Centimeter-level RTK positioning accuracy
  • Supports GPS, BeiDou, GLONASS and Galileo
  • Provides real-time differential GNSS corrections
  • Supports multiple drones for coordinated operations
  • Horizontal RTK accuracy: 1 cm + 1 ppm (RMS)
  • Vertical RTK accuracy: 2 cm + 1 ppm (RMS)
  • IP65-rated for protection against dust and water
  • Operating temperature: -20°C to 55°C
  • Designed for professional surveying, mapping and precision flight applications
  • Compatible with DJI Matrice 300 RTK

GNSS Signal Support

The D-RTK 2 simultaneously receives:

  • GPS: L1 C/A, L2, L5
  • BeiDou: B1, B2, B3
  • GLONASS: F1, F2
  • Galileo: E1, E5A, E5B

Positioning Accuracy

Single Point

  • Horizontal: 1.5 m RMS
  • Vertical: 3.0 m RMS

RTK

  • Horizontal: 1 cm + 1 ppm RMS
  • Vertical: 2 cm + 1 ppm RMS

Understanding 1 ppm: For every additional 1 km between the base station and receiving unit, the positioning accuracy can vary by approximately 1 mm. For example, at a 1 km baseline, the stated horizontal accuracy is approximately 1.1 cm.

What's Included

  • D-RTK 2 Body × 1
  • Extension Rod × 1
  • Charging Hub × 1
  • AC Power Adapter × 1
  • Intelligent Battery (WB37) × 2
  • Battery Cover × 1
  • AC Power Cable × 1
  • USB-C Cable × 1
  • USB-C OTG Cable × 1
  • Hex Key × 1

Specifications

Specification Details
Positioning Technology GNSS / RTK
Horizontal RTK Accuracy 1 cm + 1 ppm RMS
Vertical RTK Accuracy 2 cm + 1 ppm RMS
Single Point Horizontal 1.5 m RMS
Single Point Vertical 3.0 m RMS
Protection Rating IP65
Operating Temperature -20°C to 55°C
Compatible Aircraft DJI Matrice 300 RTK

Ideal for: Professional surveying, mapping, photogrammetry, inspection, construction, agriculture and other applications requiring highly accurate drone positioning.

Centimeter-Level Positioning

D-RTK 2 Mobile Station fully supports GPS, GLONASS, Beidou, and GALILEO signals. Easy and quick to set up, the D-RTK 2 Mobile Station provides real-time differential data for drones to achieve centimeter-level positioning accuracy. The built-in high-gain antenna offers better signal reception from more satellites even when obstructions are present.

Stay Connected for Any Mission

D-RTK 2 Mobile Station supports communication via 4G, OcuSync, WiFi, and LAN, ensuring uninterrupted, stable data transmission under any application scenario. Up to 5 remote controllers* can be connected to the D-RTK 2 Mobile Station simultaneously when used with DJI Agras drones, the Phantom 4 RTK, or the P4 Multispectral. When used with the Matrice 300 RTK, it can be connected to multiple aircraft, making coordinated operations involving multiple drones a possibility and significantly improving efficiency.

* When used with Matrice 210 RTK V2, the D-RTK 2 Mobile Station can only be connected to one aircraft.

Durability You Can Trust

Featuring IP65 level ingress protection and a lightweight carbon fiber body, the D-RTK 2 Mobile Station is ultra-portable and up for any task, no matter how tough. The built-in IMUs monitor movements and calibrate the tilt sensors to alert the operator of any abnormalities during the mission, minimizing risks.

A Comprehensive Solution

The D-RTK 2 Mobile Station is compatible with Phantom 4 RTK, P4 Multispectral, MG-1P RTK, Agras T16, Agras T20, Matrice 210 RTK V2 and Matrice 300 RTK、DJI Inspire 3*. Which provides high precision positioning data within the cover range of the base station, making it the ideal tool for surveying, aerial inspections, agriculture, and other industrial applications.

* Once updated to v03.00.0013 or above using DJI Assistant 2, the D-RTK 2 Mobile Station For Matrice Series is compatible with Phantom 4 RTK,
P4 Multispectral, MG-1P RTK, Agras T16, Agras T20, Matrice 210 RTK V2, and Matrice 300 RTK, DJI Inspire 3 by switching to the corresponding modes.
