Built to Endure. Engineered to Adapt.
The ultimate platform for aerial productivity combines a rugged design and simple configurability to work as a solution for a variety of industrial applications. Improvements to the M200 Series V2 enhance intelligent control systems, flight performance, and add flight safety and data security features.
Intelligent Controls
TransmissionEnjoy a more reliable and stable flight with the new OcuSync 2.0 system, which supports automatic dual frequency band switching ;and extends flight range to up to 8km
CalibrationWhen multiple payloads or third-party payloads are installed, users can readjust the drone’s center of gravity in the DJI Pilot app, enhancing flight performance and safety.
Data AccuracyThe TimeSync system continuously aligns the flight controller, camera, GPS module, RTK module for the M210 RTK V2, as well as payloads or onboard accessories. The position data is fixed to the center of the CMOS for precise geotagging when using DJI payloads.
Discreet ModeWhen the situation calls for unobtrusive drone operations, especially at night, all lights can be completely turned off in the DJI Pilot app.
Safe and Secure
AES-256 EncryptionThe AES-256 encryption keeps your data transmission secure so you can be sure that your critical information stays safe.

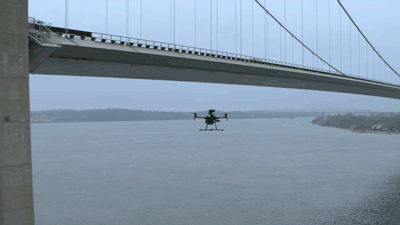

Obstacle AvoidanceA robust FlightAutonomy system with front, bottom and upper sensors detects and avoids obstacles while enabling precision hovering so that you can fly with confidence.

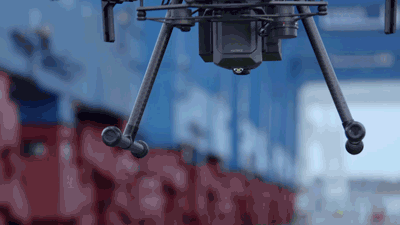

Anti-Collision BeaconEquipped with new top and bottom anti-collision beacons, the V2 drones are visible at night or in lowlight conditions, making operation in less than ideal conditions safer.
DJI AirSenseWith a built-in ADS-B receiver, the DJI AirSense technology enhances airspace safety by automatically providing the operator with real-time information about nearby airplanes and helicopters.
Always Ready
1-Click Upgrade
The remote controller, drone, payloads, RTK module, and RTK base station, can now be upgraded simultaneously with just 1-click in DJI Pilot or DJI Assisant 2Dual Battery System
The self-heating battery system allows a maximum flight time of 38 minutes and an operating temperature of -20 to 50CCompatible with Specialized Zenmuse Gimbal Cameras
The Matrice 210 is fully compatible with various DJI gimbal cameras, include camera models that have the FOV Option specialization (X4S, X5S, X7 and Z30) and specializes in thermal imaging (such as the XT and XT2). What sets the Matrice 210 apart from the Matrice 200 are its flexible payload and connectivity support. Additional sensors can also be installed from third parties of DJI’s future upgrades to make your enterprise utility drone maximize its potential further and fit the demands of more advanced drone operations.

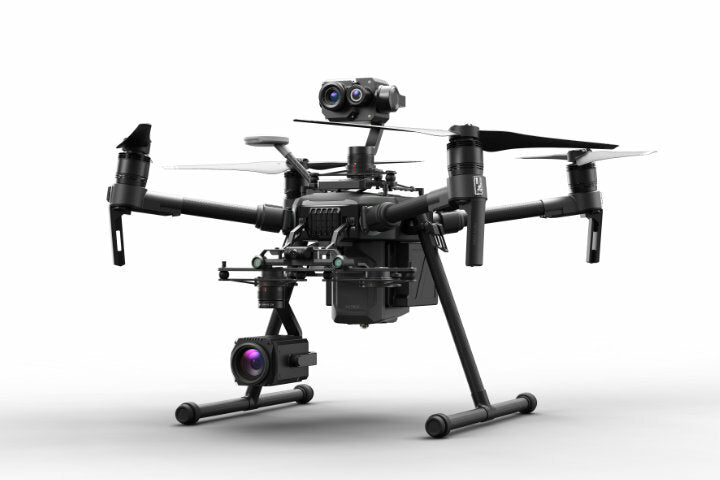

DJI Matrice 210 V2
DJI Matrice 210 V2
The ultimate platform for aerial productivity. The M210 v2 Series combines a rugged design and simple configurability to work as a solution for a variety of industrial applications.
Improvements to the M210 Series V2 enhance intelligent control systems, additional payloads, flight performance, and add flight safety and data security features.
- IP43 Water Resistant
- OcuSync 2.0
- Time Sync
- Anti-Collision Beacon
- Dual Gimbal Capable
- Power External Devices
- Excludes TB55 Flight Batteries
Features
-
Battery
What is the flight time of the M200 Series V2 drones?
No payload: M200 V2: 38 minutes, M210 V2: 34 minutes, M210 RTK V2: 33 minutes.
Full payload: M200 V2/M210 V2/M210 RTK V2: 24 minutes.When using an IN2CH Charging Hub, it takes 2 hours and 24 minutes to fully charge 2 TB55 batteries.
How do I maintain the TB55 Intelligent Flight Batteries?
1. To get the best performance of the batteries, it is recommended to mark 2 batteries as a pair before first use and continue using them as a pair (charge and discharge them together).
2. The ideal storage temperature for the batteries is between 22℃- 30℃. Do not store in humid places.
3. If not using the batteries for more than 10 days, discharge the batteries to 40%-65% of charge to store, charge and discharge them every 3 months to keep them fresh.Can the TB55 Intelligent Flight Batteries be used in low-temperature environments?
The operating temperature of the TB55 Intelligent Flight Batteries is -20℃ to 50℃. Please note that flight time will decrease when using in cold environments. It is recommended to preheat the batteries to 15℃ before flight to ensure flight performance
Can the TB55 Intelligent Flight Batteries be taken onto a flight in the carry-on baggage?
The battery has a capacity of 174.6Wh. Please follow the regulations and guidelines for traveling with these batteries via air.
Do the M200 Series V2 drones support TB50 batteries?
No, they do not.
Propulsion
What is the maximum takeoff weight of the M200 Series V2 drones?
6.14kg.
What are the maximum payload weights of the M200 Series V2 drones?
When using TB55 Intelligent Flight Batteries: M200 V2: 1.45kg; M210 V2: 1.34kg; M210 RTK V2: 1.23kg.
Remote Controller
How long does it take to fully charge the remote controller?
It takes around 2 hours to fully charge a single WB37 Intelligent Battery that is installed in the remote controller, and around 1 hour and 11 minutes using the WCH2 Charging Hub.
How long does a fully charged WB37 battery last?
Up to 4 hours of continuous use when not powering a display monitor.
Can the M200 Series remote controller be used for the M200 Series V2?
No.
How are the remote controllers for V1 and V2 drones different visually?
There is a silver ring mark on the monitor mounting bracket on the M200 Series V2 remote controller, and on the back of the bracket there is a USB port.
What is the operating temperature of the remote controller?
The operating temperature is -20℃ to 50℃.
What output interfaces does the remote controller have?
SDI and HDMI.
Transmission
What transmission system is used in the M200 Series V2 drones?
OcuSync 2.0 transmission.
What is the actual transmission distance?
The actual transmission distance depends on the local communications standards.
Under some common regulatory bodies, examples of the transmission range is as follows:
FCC: 8km
CE/MIC: 5km
SRRC: 5kmGimbal Camera
What is the resolution of the FPV camera?
608*448.
What gimbal cameras are compatible with the M200 Series V2 drones?
Zenmuse X4S/X5S/X7/XT/XT2/Z30.
What dual gimbal combinations are supported by the M210 V2/M210 RTK V2?
Please refer to the following table for an explanation of how to properly mount your dual gimbal configuration. Left and right is determined from the perspective of looking directly at the drone from the front.
Right gimbal port: Zenmuse X4S/X5S/X7/XT/XT2/Z30,
Left gimbal port: Zenmuse XT/Z30.Can the two downward gimbal cameras be controlled simultaneously on the M210 V2/M210 RTK V2?
Yes, you can control the gimbal angles of both payloads and take still photos or videos using both.
Which gimbal cameras are supported in the upward gimbal mount of the M210 V2/M210 RTK V2 drones?
The upward gimbal port supports the Zenmuse X4S/X5S/X7/XT/XT2/Z30.
What upward+downward gimbal configurations are supported by the M210 V2/M210 RTK V2 drones?
Upward gimbal mount: Zenmuse X4S/X5S/X7/XT/XT2/Z30.
Left downward gimbal port: Zenmuse XT/Z30.Can the upward and downward gimbal cameras be controlled simultaneously on the M210 V2/M210 RTK V2?
No, they cannot.
Can I adjust the FPV camera’s angle using the remote controller?
This function is currently not supported.
Which formats are supported by the Zenmuse X7 gimbal camera?
Still photography: JPEG/RAW/JPEG+RAW.
Video: MP4/MOV.Aircraft
How are the M200 Series and M200 Series V2 drones different visually?
The M200 Series V2 drones have new anti-collision beacons on the aircraft shell and at the bottom of the battery compartment. The V2 arm lights are equipped with optical lenses, and the engraving on the body of the drone shows V2.
No.
What is the hovering precision of the M200 Series V2?
M200 V2/M210 V2 in P-mode with GPS: vertical: ±0.5m (±0.1m when Downward Vision System enabled). Horizontal: ±1.5m (±0.1m when Downward Vision System enabled).
M210 RTK V2 with RTK enabled on: vertical ±0.1m, horizontal ±0.1m.What is the Ingress Protection rating of the M200 Series V2 drones?
IP43, means that the Matrice 200 Series V2 can be protected from objects greater than 1 millimeter, and from water spray less than 60 degrees vertically. The IP43 protection rating can protect the Matrice 200 Series V2 when used in adverse environments with dust particles or light showers.
Note: The protection rating may reduce or fail in case of folded-frame arms, exposed ports as a result of open cover, loose weatherproof shell top plugs, and if the aircraft is broken.Does my purchase of an M200 Series V2 drone come with a Micro SD card?
Yes. A 64GB Micro SD card is included.
Application
What do I need to fully utilize the RTK functions of the M210 RTK V2?
The performance and accuracy of the RTK functions can be enhanced with real-time differential correction using the DJI D-RTK2 High Precision GNSS Mobile Station For Matrice Series, which can be purchased separately.
Does the M210 RTK V2 support Post Processed Kinematic (PPK)?
Yes, this means location data can be corrected after the drone data has been captured during flight.
IP67-rated.
Which SDKs are supported by the M200 Series V2?
M210 V2/M210 RTK V2 supports the OSDK, PSDK and MSDK. M200 V2 supports PSDK and MSDK.
How do I get technical support for SDKs?
Please contact dev@dji.com.
Software
How do I upgrade the firmware of the M200 Series V2 drones?
You can connect the drones to a PC and run the upgrade using DJI Assistant 2 For Matrice, or connect LTE USB modem to the remote controller to upgrade.
What apps and software are supported by the M200 Series V2?
Currently supports DJI Pilot. Support for GS Pro is coming soon.
Package Includes
1 x Aircraft Body
1 x Cendence Remote Controller
2 x Landing Gear
1 x Crystal Sky 7,85″
1 x WB37 Charging Hub
2 x WB37 Batteries
1 x Charging Hub & Powersupply
4 x Propellers
1 x Power Cable
1 x USB Cable
1 x Mobile Device Holder
1 x Carry Case
3 X Gimbal Damper
1 x Remote Controller Strap
1 x 64GB Micro USB Card
1 x Screwdriver Set
1 x Cendence Controller stick Covers
1 x Spare waterproof rear port cover
