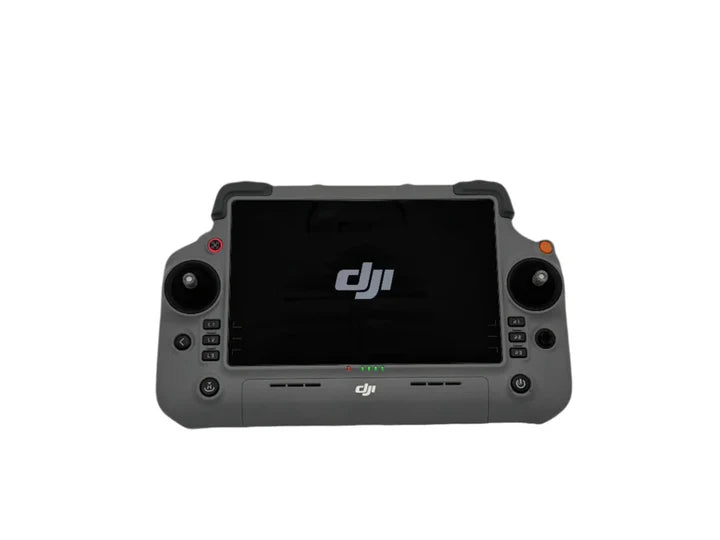

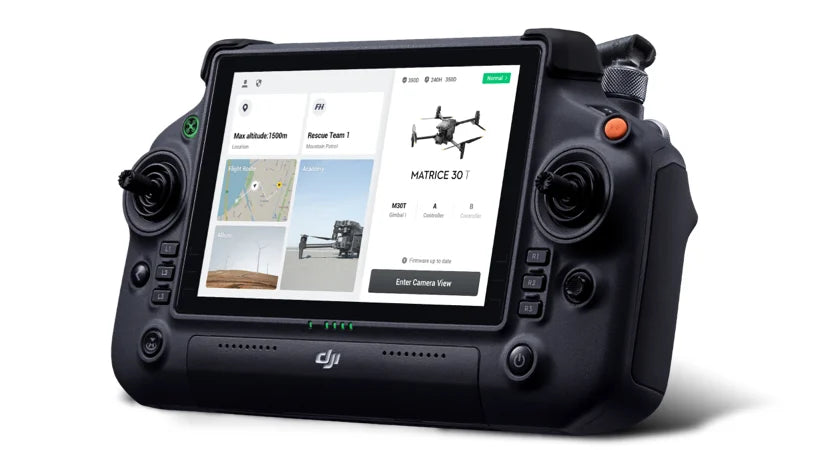

DJI RC Plus 2 Controller

Precision Control. Rugged Design. Enterprise Ready.

The DJI RC Plus 2 Controller is a professional enterprise remote controller designed for demanding aerial operations. Combining a high-brightness 7-inch touchscreen, rugged IP54 protection, advanced O4 Enterprise video transmission, and support for SDR and 4G hybrid transmission, it delivers reliable control and clear situational awareness in challenging environments.

Whether operating in busy urban areas, remote industrial sites, mountainous terrain, or demanding field conditions, the RC Plus 2 provides the connectivity, durability, and precision required for professional drone operations.

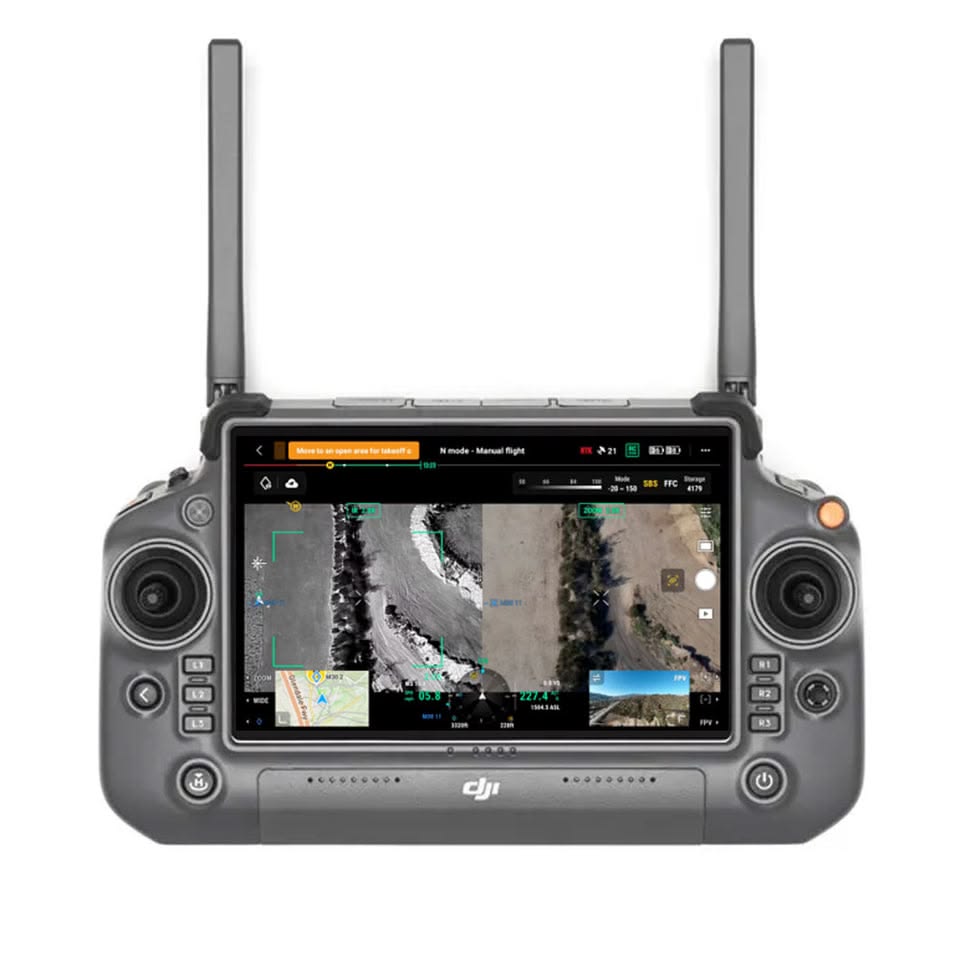

Ultra-Bright 7-Inch Touchscreen

The RC Plus 2 features a 1400-nit, 1920 × 1200 resolution display, providing excellent visibility even in direct sunlight. The large 7-inch touchscreen gives pilots a clear view of live video, maps, telemetry, and flight information.

Physical controls and a responsive touchscreen also allow precise operation while wearing gloves.

O4 Enterprise Transmission

Powered by DJI's advanced O4 Enterprise transmission system, the RC Plus 2 provides a smooth and stable live video connection in challenging RF environments.

The system supports 1080p/30fps live video transmission and offers a transmission range of up to 25 km under FCC conditions, depending on the aircraft and operating environment.

Its high-gain antenna array and 2T4R dual-transmitter, quad-receiver architecture help maintain reliable communication, while automatic frequency hopping across supported frequency bands helps improve connection stability.

SDR & 4G Hybrid Transmission

The RC Plus 2 supports SDR and 4G hybrid transmission, providing an additional layer of connectivity for enterprise operations where maintaining a stable connection is critical.

This makes it well suited to professional applications such as surveying, inspection, mapping, public safety, infrastructure monitoring, agriculture, and industrial operations.

Rugged IP54 Protection

Designed for demanding field environments, the RC Plus 2 features an IP54 protection rating, helping protect the controller against dust and water exposure.

It operates reliably across a wide temperature range of –20°C to +50°C (–4°F to 122°F), making it suitable for use in challenging weather conditions.

Extended Runtime & Swappable Battery

The built-in 6,500mAh Li-ion battery provides up to approximately 3.8 hours of operating time.

The controller also supports the DJI WB37 Intelligent Battery, which can provide additional operating time. The battery system allows batteries to be replaced efficiently during operations, helping minimise downtime during extended missions.

Professional Controls

The RC Plus 2 features dedicated joysticks, customizable buttons, and control dials, giving pilots direct access to essential flight and payload functions.

Its Android-based operating system also supports compatible third-party applications and professional mission-planning workflows.

Key Features

• 7-inch ultra-bright touchscreen

• 1400-nit display brightness

• 1920 × 1200 resolution

• O4 Enterprise video transmission

• SDR and 4G hybrid transmission support

• 1080p/30fps live video transmission

• Up to 25 km transmission range under FCC conditions

• 2T4R dual-transmitter and quad-receiver system

• IP54-rated dust and water protection

• Operating temperature: –20°C to +50°C

• 6,500mAh internal Li-ion battery

• Support for DJI WB37 external battery

• GPS, Galileo and BeiDou positioning

• HDMI Type-A video output

• Wi-Fi 6 and Bluetooth 5.2

• USB-C charging with up to 100W input

• Professional physical controls and customizable buttons

Specifications

General

O4 Enterprise / OcuSync Transmission

Wi-Fi

Bluetooth

Storage & Charging

Compatibility

The DJI RC Plus 2 Controller is designed for compatible DJI enterprise aircraft, including:

• DJI Matrice 4T

• DJI Matrice 4E

• DJI Matrice 400

Note: Aircraft and feature compatibility may depend on firmware version, regional requirements, and DJI software updates. Always ensure the aircraft and controller are updated to the latest compatible firmware.

Ideal for Professional Applications

The DJI RC Plus 2 is an ideal control solution for:

• Surveying and mapping

• Mining and quarry inspections

• Agriculture

• Infrastructure inspection

• Public safety and emergency response

• Industrial inspections

• Security operations

• Search and rescue

• Construction and engineering

• Professional aerial imaging
