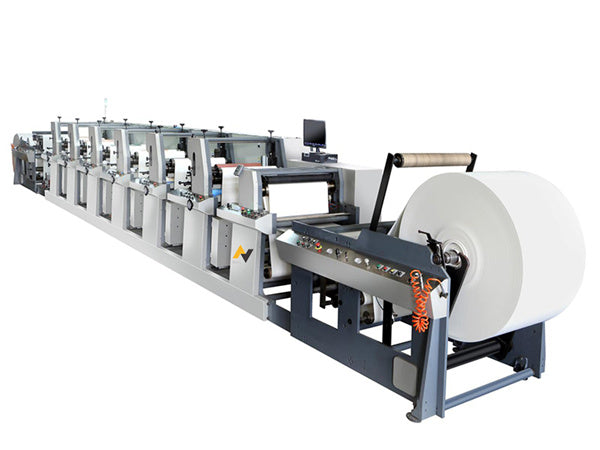

Flexographic Printing Machine

Product Details:

Application Object:

Suitable for eco-friendly packaging, such as the pre-printing carton, paper bag, paer box, paper cup used for food, milk and medicine package.

Paper Used:

kraft paper, carton board materials, coated paper, liner paper, laminated paper, nonwoven paper

Technical Parameters:

MODEL

NW-A 920

Specification

35.5(900)

Max.Web Width

920mm

Max.Printing Width

900mm

Printing Repeat

286--1200mm

Die-cutting Repeat

286--1200mm

Max.Unwinder Diameter

1524mm/1200mm

Max.Rewinder Diameter

1524mm/1200mm

Gearing

1/8cp

Max Printing Speed

150m/min

Diameter of web roller

100mm

Base motor power

15kw-22kw

Drying mode

Warm Drying/IR Drying/ UV Drying

Oil used

Aqueous ink/ UV Ink

Power Requirement

380V 3PH 50Hz

Substrate

30g copy paper, cotton paper, 40-450g chrome paper, aluminum-foil paper, ,paper board, kraft paper

Main Characteristics

1. Use water based ink and UV ink

2. Ceramic anilox rollers can be used for a long time, and can supply ink appropriately

3. Warm drying, IR drying, UV drying are available

4. Closed loop tension control is used to make printing tension much more stable, and register much more accurate

5. Automatically electronic web-guid system
