Product Description: Future Beats 9.1-Inch Trim Plate with SWC, CANbus, and Harness for Mercedes-Benz Vito W447 (2014–2018)
Elevate your Mercedes-Benz Vito W447 (2014–2018) with the Future Beats 10.1-Inch Trim Plate Installation Kit, designed for seamless integration of a 10.1-inch aftermarket multimedia head unit. This comprehensive kit includes a custom-fit 10.1-inch trim plate (fascia adapter), a CANbus decoder, a wiring harness, and a steering wheel control (SWC) interface, ensuring retention of factory features and a sleek, OEM-style installation.
Key Components and Features:

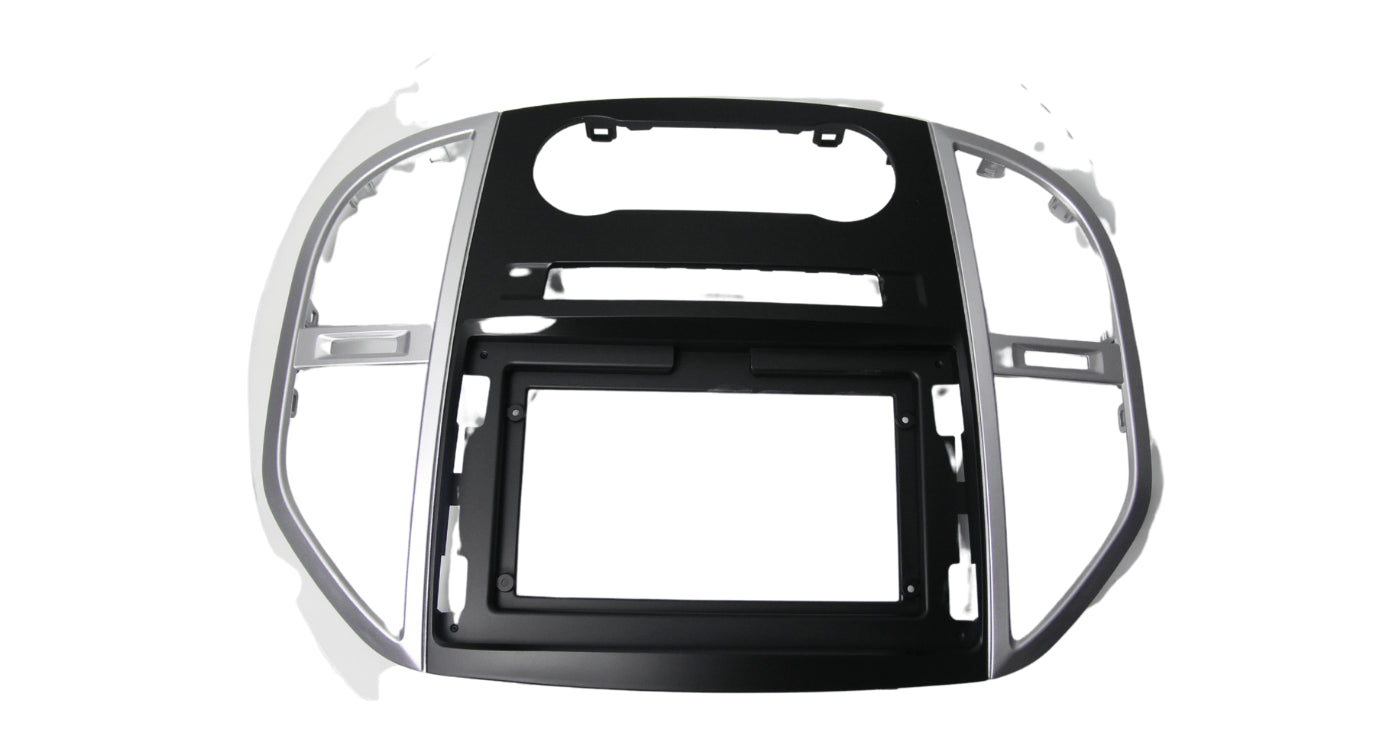

    1. 9.1-Inch Double DIN Trim Plate (Fascia Adapter):
      • Tailored Fit: Specifically designed for Mercedes-Benz Vito W447 (2014–2018), accommodating a 10.1-inch Double DIN head unit.
      • Premium Material: Constructed from high-quality ABS plastic for durability and a flush, gap-free fit that matches the Vito’s dashboard aesthetics.
      • Secure Installation: Utilizes side-fixing brackets for a stable, professional installation, eliminating the need for a radio cage. Compatible with 113mm high cages supplied by major head unit manufacturers (e.g., cage part number 51-013, available separately from Future Beats).
    2. CANbus Decoder:
      • Factory Feature Retention: The advanced CANbus decoder (e.g., compatible with Hiworld or similar systems) ensures seamless integration with the Vito’s electronics, supporting:
        • Steering Wheel Controls (SWC): Retains volume, track skip, phone buttons, and menu access for compatible aftermarket head units.
        • Reverse Camera Support: Automatically displays the rear camera feed (if equipped) when reversing.
        • Vehicle Signals: Provides CANbus outputs for ignition, illumination, speed pulse, reverse gear, and handbrake signals.

      • Smart Ignition Control: Features a PRE-15 ignition function, activating the head unit with the remote key and deactivating after a 15-second press of the push-to-talk (PTT) button, preventing power loss in Eco mode.


      • Configuration: Requires selection of the appropriate CANbus protocol in the Android host’s factory settings (e.g., Hiworld BZ11.20 or similar) for optimal performance.

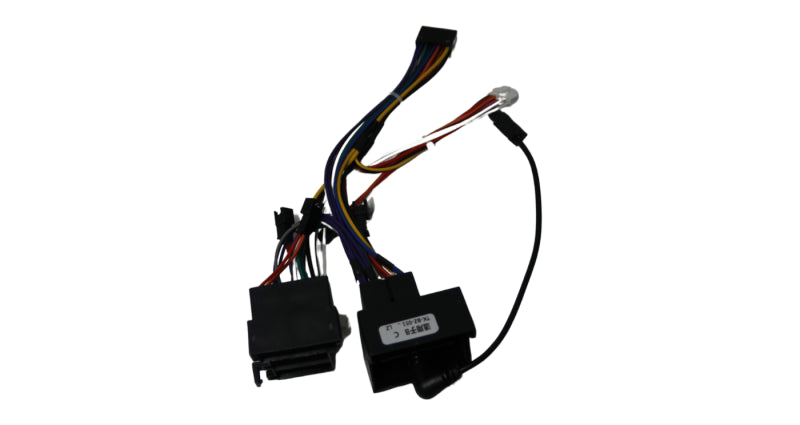

    3. Wiring Harness with SWC Interface:
      • Plug-and-Play Connectivity: Adapts the Vito’s Quadlock connector to standard ISO connectors, compatible with aftermarket head units from Alpine, Blaupunkt, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, or Android systems.

      • Steering Wheel Control Integration: Includes a dedicated 49-Series patch lead (required, sold separately or included based on radio brand) to connect the SWC interface to the head unit’s steering control input (typically a 3.5mm jack).


      • Additional Outputs: Supplies ignition, illumination, speed pulse (pink wire), reverse (+12V, purple wire), parking brake (-12V ground, green wire), and mute signals (yellow/black wire) for full functionality with modern head units.


      • Amplifier Retention: Includes a Quadlock insert to maintain the original FM antenna amplifier for optimal radio reception.


    4. Key Features:

      • Vehicle-Specific Design: Engineered for Mercedes-Benz Vito W447 (2014–2018), ensuring compatibility with models equipped with Audio 10, Audio 15, or Audio 20 systems.


      • Versatile Head Unit Support: Ideal for Android head units (e.g., Android 12 or 13) and major brands, enabling features like Apple CarPlay, Android Auto, GPS navigation, and Bluetooth.
      • Professional Aesthetic: Maintains the Vito’s premium interior look with a seamless, factory-like fit.
Vehicle Compatibility:
    • Mercedes-Benz Vito W447 (Panel Van, Crew Van, Tourer): 2014–2018
    • Note: Not compatible with older Vito W639 (2003–2014) or Viano models. For W639, contact Future Beats for alternative kits.
Installation Notes:
    • Plug-and-Play Setup: Designed for easy installation, though professional installation is recommended to ensure proper CANbus and SWC configuration.

    • Tools Recommended: Includes non-damaging nylon trim panel tools (available from Future Beats) to protect your Vito’s interior during installation.


    • Configuration Requirement: For Android head units, update the MCU and CANbus configuration file via WiFi to match the vehicle’s protocol (instructions provided by Future Beats).
    • Power Supply Tip: Some Vito models with Eco mode may require a direct battery power supply (sold separately) to maintain head unit memory.

    • Patch Lead Note: A dedicated 49-Series patch lead specific to the head unit brand is required (e.g., Alpine, Pioneer). Select the correct patch lead at purchase or opt for a universal patch lead kit for flexibility.
