Future Beats 9-Inch Android 12.0 Trim Plate with WiFi, 2+32GB, SWC, CANbus, and Harness for Isuzu D-Max (2012–2020)

Future Beats 9-Inch Android 12.0 Trim Plate with WiFi, 2+32GB, SWC, CANbus, and Harness for Isuzu D-Max (2012–2020)

R 0.00 ZAR
R 0.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Product Description: Future Beats 9-Inch Android 12.0 Trim Plate with WiFi, 2+32GB, SWC, CANbus, and Harness for Isuzu D-Max (2012–2020)
Upgrade your Isuzu D-Max (2012–2020) with the Future Beats 9-Inch Android 12.0 Trim Plate Installation Kit, designed to seamlessly integrate a high-performance 9-inch Android 12.0 multimedia head unit into your vehicle’s dashboard. This all-in-one kit includes a custom-fit 9-inch double DIN trim plate (fascia adapter), a CANbus decoder, a wiring harness, a steering wheel control (SWC) interface, and a powerful head unit with 2GB RAM, 32GB ROM, and WiFi connectivity, delivering modern features and a professional, OEM-style finish.
  1. 9-Inch Android 12.0 Head Unit:
    • Operating System: Powered by Android 12.0, offering a user-friendly interface with access to the Google Play Store for apps like Spotify, Waze, and YouTube.
    • Hardware: Quad-core processor with 2GB RAM for smooth multitasking and 32GB ROM for ample storage of apps, music, and offline maps.
    • Display: 9-inch HD capacitive touchscreen (1024×600 resolution) with Gorilla Glass, providing vibrant visuals and responsive touch control.
    • WiFi Connectivity: Built-in WiFi module for online streaming, app downloads, and real-time navigation using apps like Google Maps.
    • Smart Features: Supports Apple CarPlay and Android Auto (wired, via ZLink app; wireless on select configurations), split-screen mode, mirror link for iOS/Android, and Bluetooth 5.0 for hands-free calls and music streaming.
    • Audio Output: Integrated DSP (Digital Signal Processor) with customizable EQ settings for enhanced sound quality, compatible with the D-Max’s standard or premium audio systems.

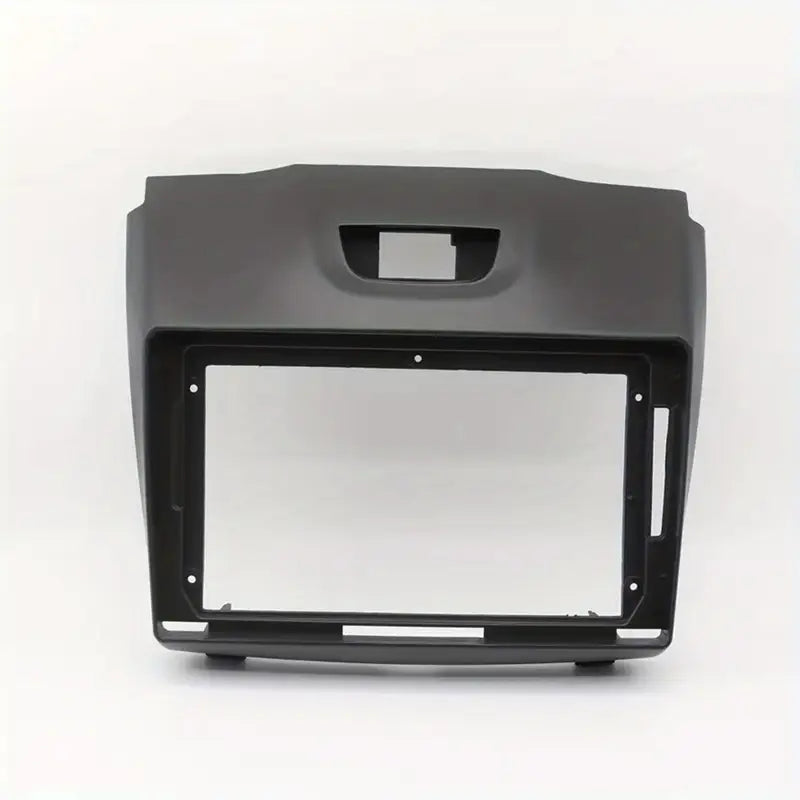

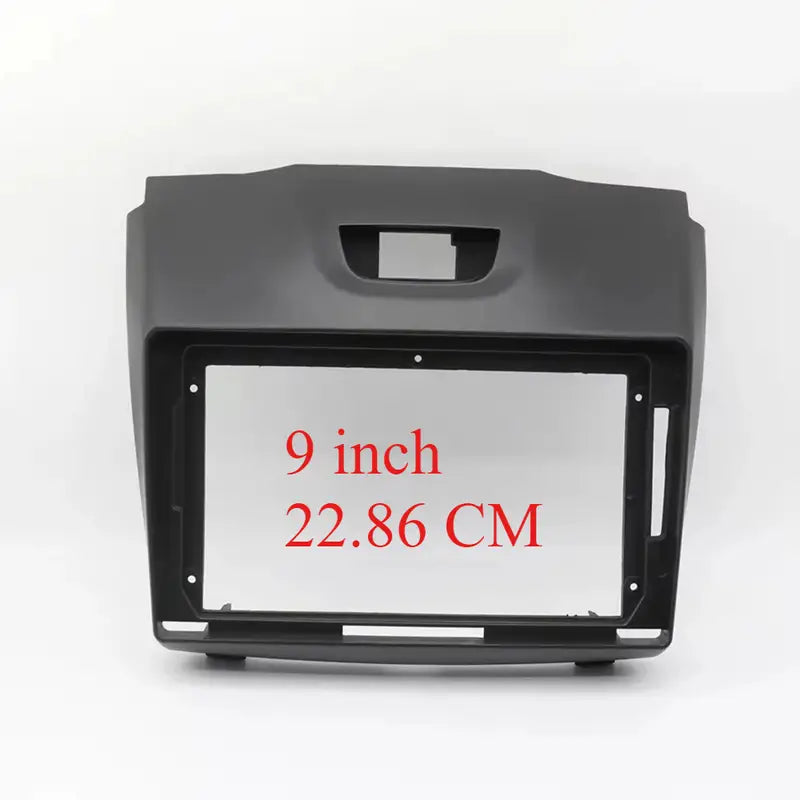

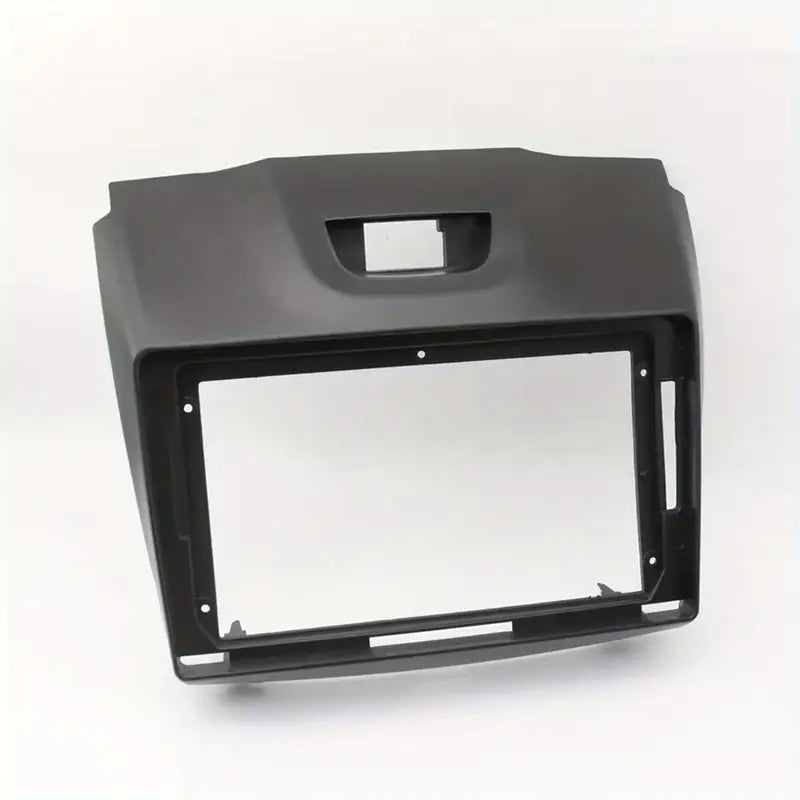

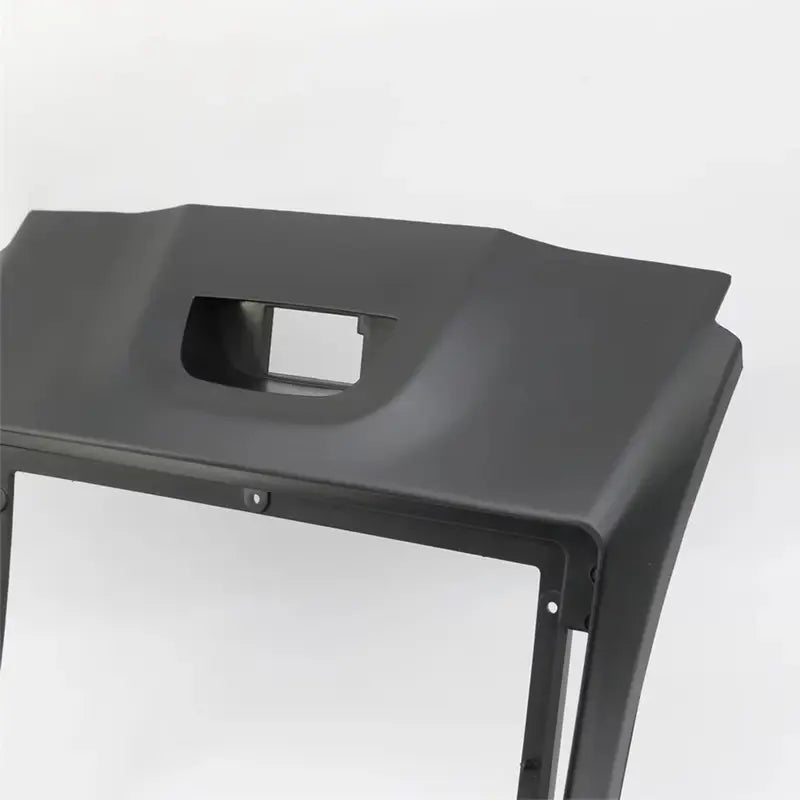

  2. 9-Inch Double DIN Trim Plate (Fascia Adapter):
    • Custom Fit: Specifically designed for Isuzu D-Max RT-series (2012–2020, SX, LS-M, LS-U, X-Terrain, Single/Space/Crew Cab, right-hand drive), accommodating a 9-inch double DIN head unit.
    • Premium Construction: Crafted from high-grade ABS plastic, color-matched to the D-Max’s dashboard (typically matte black) for a seamless, gap-free integration.
    • Secure Installation: Features precision brackets for a stable, professional fit, compatible with standard 9-inch head unit cages (included or available separately from Future Beats).
  3. CANbus Decoder:
    • Factory Feature Retention: Supports the D-Max’s electronics, enabling:
      • Steering Wheel Controls (SWC): Retains factory audio controls for volume, track selection, phone functions, and menu navigation (available on LS-M, LS-U, X-Terrain trims).
      • Reverse Camera Support: Automatically displays the aftermarket or factory rear camera feed (if equipped) when reversing, ideal for off-road or urban parking.
      • Vehicle Signals: Provides outputs for ignition, illumination, speed pulse, reverse gear, and parking brake signals.
    • Smart Power Management: Activates the head unit with the vehicle’s key and deactivates after a brief delay, preventing battery drain.
    • Configuration Note: Configure the CANbus protocol in the Android head unit’s factory settings for optimal performance. Some base SX models may not require a CANbus decoder; confirm with Future Beats.
  4. Wiring Harness with SWC Interface:
    • Plug-and-Play Design: Converts the D-Max’s proprietary connector to standard ISO connectors, compatible with the included Android head unit or other brands (e.g., Alpine, Pioneer). Includes harnesses for 2012–2020 models (non-MyLink and MyLink configurations).
    • Steering Wheel Control Integration: Includes a universal patch lead to connect the SWC interface to the head unit’s steering control input (typically a 3.5mm jack or KEY1/KEY2 wires), ensuring full functionality of factory buttons.
    • Additional Outputs: Supplies ignition, illumination, speed pulse, reverse (+12V), parking brake (-12V ground), and mute signals for seamless integration.
    • Amplifier Support: Supports the D-Max’s standard audio system or factory amplifier (if equipped), ensuring high-quality audio output.
  5. Key Features:
    • Vehicle-Specific Compatibility: Tailored for Isuzu D-Max RT-series (2012–2020, SX, LS-M, LS-U, X-Terrain, right-hand drive), supporting factory radios (e.g., standard AM/FM/CD or Clarion navigation with adapter).
    • Modern Functionality: Includes FM/AM radio with RDS, USB ports (2x), 1080p video playback, and support for optional accessories like OBD2 scanners, DVR cameras, or TPMS.
    • Professional Aesthetic: Maintains the rugged, functional interior look of your D-Max with a factory-like fit and finish.
Vehicle Compatibility:
  • Isuzu D-Max RT-series (Single/Space/Crew Cab, right-hand drive): 2012–2020
  • Note: Designed for right-hand drive models sold in South Africa. Not compatible with 2020+ third-generation D-Max or models with factory Clarion navigation without an additional adapter (available for ~R550 from Future Beats). For vehicles with MyLink systems (2014–2016), a specific harness is included. Provide a dashboard photo to Future Beats to ensure the correct harness. Contact Future Beats to confirm compatibility with your specific model and trim.
Installation Notes:
  • Plug-and-Play Setup: Designed for straightforward installation, though professional installation is recommended for proper CANbus and SWC configuration.
  • Tools Recommended: Includes non-damaging nylon trim panel tools (available from Future Beats) to protect your vehicle’s interior during installation.
  • Configuration Requirement: Update the MCU and CANbus configuration via WiFi in the Android head unit’s settings to match the vehicle’s protocol (instructions provided by Future Beats).
  • Power Supply Tip: Some D-Max models may require a direct battery power supply (sold separately) to maintain head unit memory.
  • Patch Lead Note: A brand-specific patch lead is included for the Android head unit’s SWC compatibility. For other head unit brands, confirm with Future Beats at purchase.
  • Fitment Note: For models with factory navigation, an Aerpro AP9163 adapter may be required. Minor dashboard clip adjustments may be needed for a secure fit.
