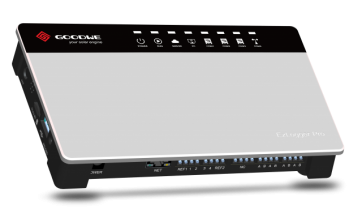

Goodwe EzLogger Pro

The EzLogger Pro is a self-developed monitoring device by GoodWe. In combination with a GoodWe solar inverter, it can easily read and record all key plant data and constantly transmit the data to the GoodWe portal via the internet.

The EZLogger links to the inverter via RS485, connects to a PC via Ethernet, and transmits data to the GoodWe monitoring software EzExplorer and the GoodWe portal.

EzLogger Wi-Fi links to the inverter via RS485 and connects with the wireless router via a built-in Wi-Fi communication module, and transmits data to the GoodWe portal.

Communication management Communication Inverter communication 3 x RS485 PC communication 10/100M Ethernet Wireless module (optional) Wi-Fi; GPRS Number of managed devices RS485 60 (The number of devices connected to a single RS485 port shall not exceed 20) Communication distance RS485 1000m (shielded twisted pair wire shall be used) Ethernet 100m Wi-Fi 15m (reference value) GPRS Not limited General parameters General parameters Power adapter Input: 100 ~ 240Vac, 50/60Hz, output: 12Vdc 1.5A Power consumption General 3W, maximum 6W Storage capacity 16MB, expandable to 8GB through an optional SD card Dimensions (L * W * H) 190*118*37mm Weight 500g Operating temperature -20°C ~ +60°C Relative humidity (no condensation) 5% ~ 95% IP rating IP20 Installation method Wall mounting, table surface mounting, rail mounting Display 8 LED indicators
