JBL STADIUM GTO20M CAR SPEAKER

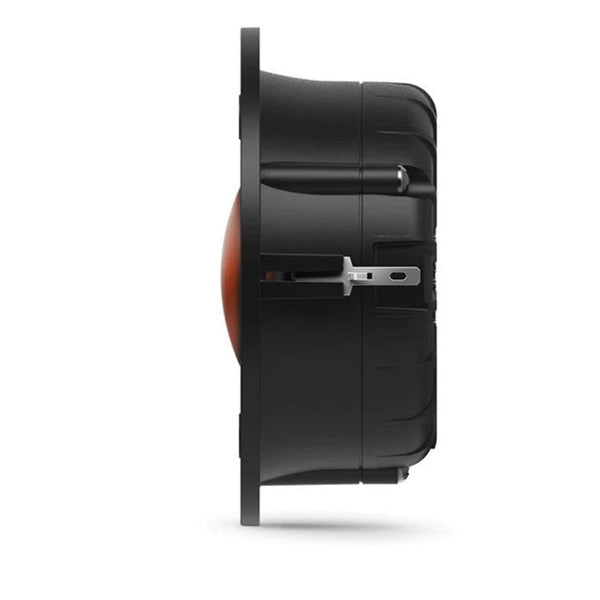

2" (50mm) dome midrange w/ bandpass crossover enclosure
Ultimate Car Audio by JBL.
JBL – speaker of choice for the world’s top recording studios, concert events and movie theaters, delivers a world class listening experience to car audio with the new Stadium speakers. Unmistakably JBL. The high output 2 ohm design extracts every watt of power from the amplifier or head unit enabling the patented Plus One™ woofers to deliver an impressive wallop for mega volume aficionados. Sophisticated crossovers coupled with soft dome tweeters produce smooth as silk highs with extraordinary detail even at the highest volume levels. An optional midrange speaker with bandpass crossover provides seamless integration with woofer and tweeter, transforming a two-way component system into a three-way system for another magnitude of sound. Rigorous OEM-level reliability testing provides peace of mind when it’s time to crank it up for that inimitable JBL adrenalin surge.
FEATURES AND BENEFITS
JBL Patented Plus One™ Glass Fiber Woofers with Rubber Surrounds
Plus One™ glass fiber woofer cones are lighter and stiffer with up to 25 percent more active cone-area than the competition. The result is remarkably accurate sound with high SPL performance. The hi-roll rubber surrounds allow the woofer cone to move freely and emit bolder bass.
Oversized (35mm) Woofer Voice Coils
Oversized voice coils with extra copper and surface area serves to dissipate the heat for improved reliability, enabling maximum power handling with low distortion.
Edge-driven Soft Dome Tweeters
Home theater quality soft dome tweeters deliver broader and smoother high frequency response. A push-button tweeter level control (+0 dB flat and +3 dB) provides custom tuning of high frequencies in most multi-element speakers.

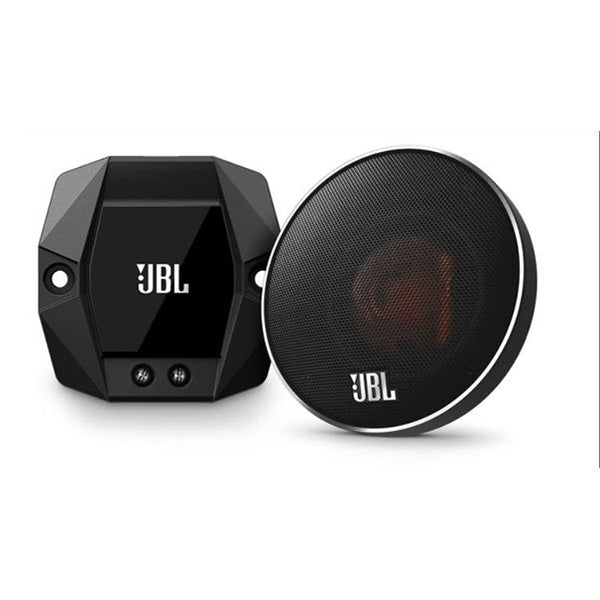

Crossovers on component systems are gap-switchable to accommodate a midrange upgrade. The optional midrange includes a bandpass crossover to convert a two-way system into a threeway system with perfect tonal balance and is designed to fit into many factory three-way applications.
High Output 2 Ohm Design
High output 2 ohm design with low impedance voice coils extracts every watt from the amplifier, delivering peak power with ease. Lower impedance also compensates for any added resistance in thin factory-installed wiring.
Harman Standard Reliability Testing
JBL speakers have to go through environmental testing that would destroy other speakers. JBL freezes them, bakes them, shakes them, blasts them with ultraviolet light and drives them at full power for days at a time.
JBL employs second order filters for tweeters and sophisticated two-way crossovers for multi-element speakers and component systems resulting in higher power handling and added flexibility and accuracy when tuning speakers. A higher quality crossover allows JBL’s wizards to consider speaker acoustic characteristics as well as specifications when tuning the JBL sound.
Stadium Speakers by JBL
The modern exterior design and premium finishes of Stadium speakers further reflect the quality of JBL engineering. In short, they look as good as they sound.
