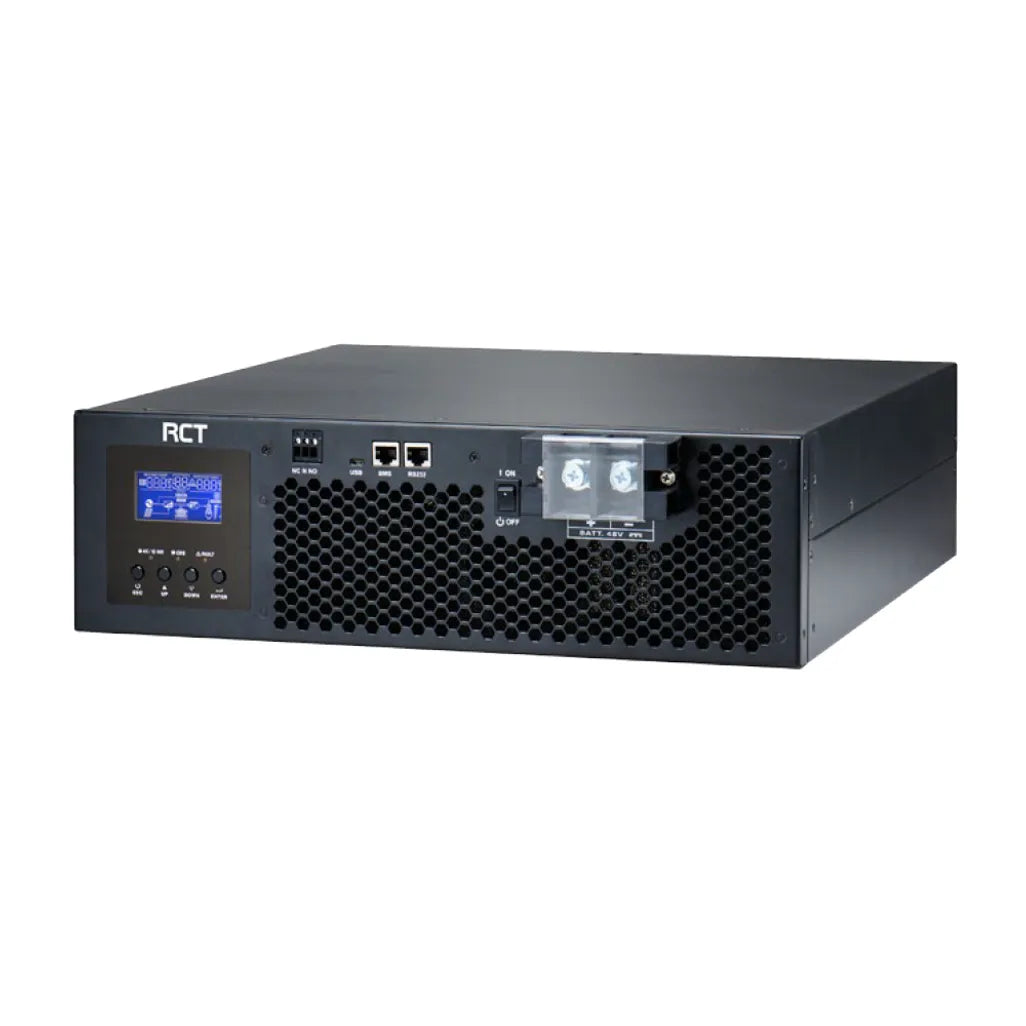

RCT AXPERT KING 5KVA RACK MOUNT WITH PARALLEL KIT

RCT Axpert King 5K48 5kVA 5kW 48V Rack Mount Hybrid Inverter

Features

Zero transfer time to protect mission-critical loads such as servers and ATM.
Reserved communication port for BMS (RS485, CAN-BUS or RS232).
Configurable AC/PV output usage timer and prioritization.
Pure sine wave solar inverter.
Selectable high power charging current.
Wide DC input range.
Auto restart while AC is recovering.
Smart battery charger design for optimized battery performance.
Overload and short circuit protection.
Optional parallel operation up to 9 units.
Technical Specifications

Model: RCT-AXKINGRM-5K48V.
Rated Power: 5000VA/5000W.
Parallel Capability: Up to 9 units.
Input

Voltage: 230 VAC.
Voltage Range: 110-280 Vac.
Frequency Range: 50 Hz/60 Hz (Auto sensing).
Output

AC Voltage Regulation: 230 Vac ± 5%.
Output THDv: Surge Power: 10000VA for 5 sec.
Efficiency (Peak): 93 % at Line Mode, 90% at Battery Mode.
Transfer Time: 0 ms.
Waveform: Pure sine wave.
Battery

Battery Voltage: 48 Vdc.
Floating Charge Voltage: 54 Vdc.
Overcharge Protection: 66 Vdc.
Solar Charger & AC Charger

Solar Charger Type: MPPT.
Maximum PV Array Open Circuit Voltage: 145 Vdc.
Maximum PV Array Power: 4000 W.
MPP Range @ Operating Voltage: 60 ~ 115 Vdc.
Maximum Solar Charge Current: 80 A.
Maximum AC Charge Current: 60 A.
Maximum Charge Current: 140 A.
Physical

Dimension, D x W x H (mm): 366.3 x 438 x 130.8.
Net Weight (kgs): 15.
Communication Interface: USB/RS232/RS485/Bluetooth/Dry contact.

What's in the box
1 x RCT Axpert King 5K48 5kVA 5kW 48V Rack Mount Hybrid Inverter
