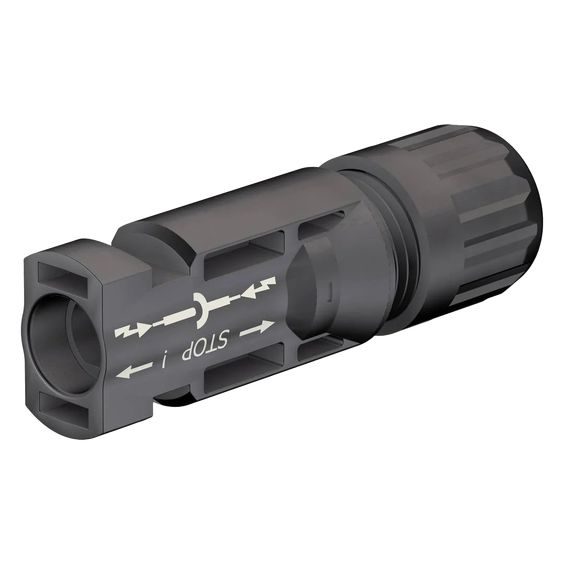

STAUBLI PV-KST4/6II-UR CABLE COUPLER, MALE, MC4, 4-6MM²

The Staubli PV-KST4/6II-UR Cable coupler is a high-quality male connector designed for use with Multi-Contact MC-4 Inline connectors. It is specifically designed for use with wires of size 4-6mm² and has a voltage rating of 1000-Volt DC/600-Volt DC and a current rating of 30-Amps.

Like the Multi-Contact MC-4 connector, the Staubli PV-KST4/6II-UR cable coupler has a tin-plated copper alloy contact, which ensures a reliable and low-resistance connection between the PV panels and the rest of the system. This helps to minimize power losses and maximize the efficiency of the PV installation.

The PV-KST4/6II-UR cable coupler is also designed for superior protection against solid objects and liquids, with an IP67/IP68/IP2X degree of protection. This ensures that the connector is well-protected against dust, water, and other potential contaminants, which can help to extend the lifespan of the connector and reduce maintenance costs.

The connector has a 5.5 - 9 mm OD and a snap-in locking mechanism that makes it easy to install and remove, even in challenging environments. It also has a temperature rating of -40 to 75 deg C, which makes it suitable for use in a wide range of climates.

Overall, the Staubli PV-KST4/6II-UR Cable coupler is a reliable and high-quality connector that can help to ensure efficient and safe operation of the PV system. Its advanced contact technology, low resistance, and superior protection features make it an excellent choice for anyone looking for a dependable connector for their PV installation.
