camera includes an external USB GPS receiver to automatically geo-tag each captured

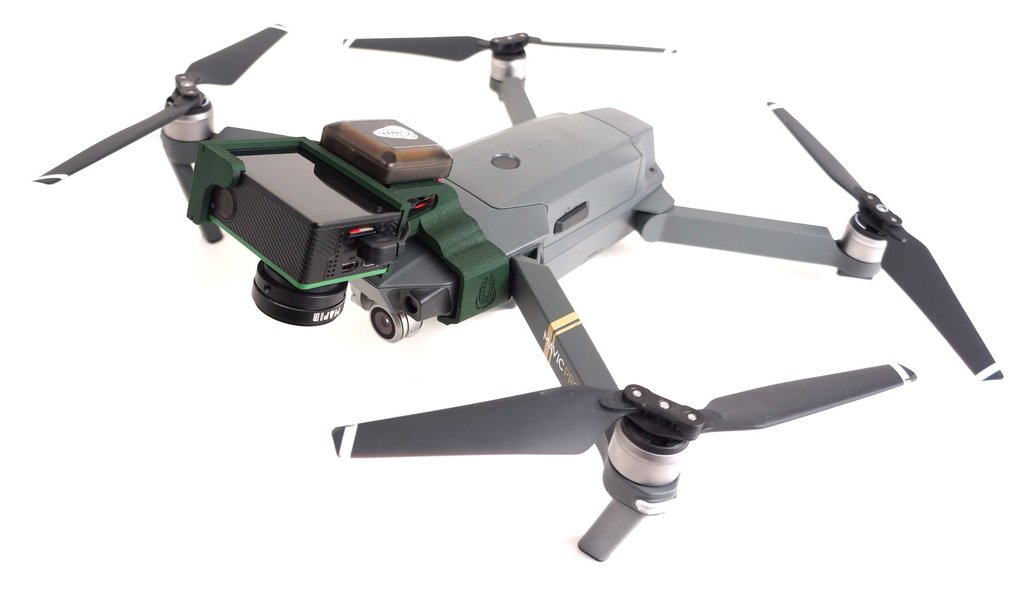

image. Its 12MP sensor and sharp non-fisheye lens allows you to easily capture aerial media. It captures photos on the default timer trigger or can be sent a PWM signal through the HDMI port (see below). If you supply power to the USB port it will power on the camera automatically. Sized similar to a GoPro® Hero these small survey cameras can be attached to your aerial drone platform using our various mounts.
This NIR+Green+Blue (NGB, ENDVI) model sees Near Infrared 850nm, Green 550nm and Blue 475nm light. The images from this camera are commonly calibrated into an index image and then a colored lut is applied to show contrast between healthy and poor health vegetation.
The Survey3 cameras have a faster interval timer: 1.5 seconds for JPG mode and 2.75 seconds for RAW+JPG mode. (Capture speed depends on the speed of the microSD card used). You can also trigger the photo capture using a PWM signal through the HDMI port (see triggering information below). PWM can also be used to mount the camera's memory card to a computer connected via USB.
The Survey3N Camera - NIR+Green+Blue (PRE-OWNED- UNIT ONLY) is the product you didn't think you need, but once you have it, something you won't want to live without.
