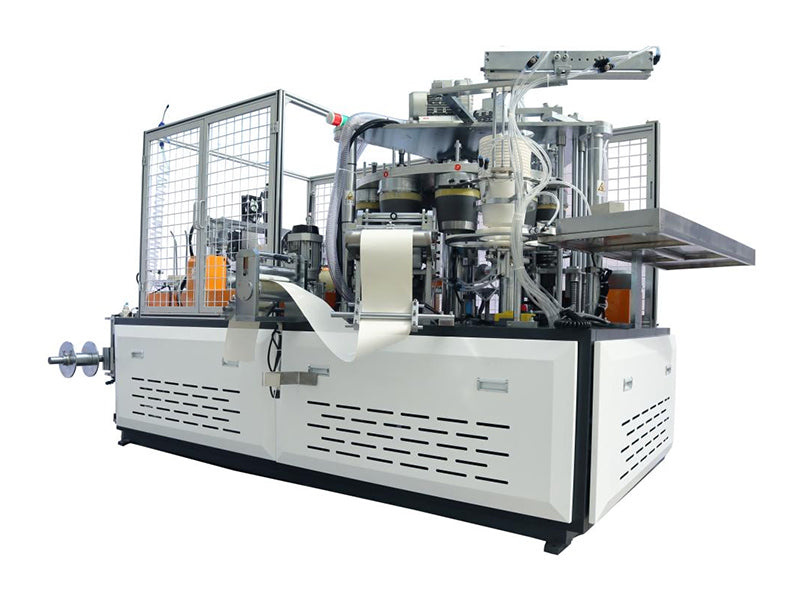

NW-B120 Bucket Making Machine

Product Application:

Features：

Intelligent salad bowl molding machine has the advantages of high performance, high efficiency and high quality; the integral steel plate body and oily lubrication system ensure the long-term normal and stable operation of the equipment.

Intelligent salad bowl molding machine has the advantages of high performance, high efficiency and high quality; the integral steel plate body and oily lubrication system ensure the long-term normal and stable operation of the equipment.

Technical Parameter:

Model	NW-B120	T：ф140-200mm B：ф120-165mm H：90-170mm
Production speed	30-55 pcs / min
Size	The 60oz-120oz.Can be replaced according to the user's actual size needs
raw material	Single / double PE shower membrane paper
The paper is heavy	PE shower membrane paper at 180-350 g / m 2
voltage	380V 50Hz
total power	15KW
weight	3000KG
size	3400 x1600 x1850mm (L*W*H)
Air pressure requirements	0.6Mpa  0.6 m3/minute
Machine production shall be equipped with an air compressor.

Mechanical details:

Sample Show:

Main Features:

● Multi-model modules. Use simple window prompts for guidance and select the model to set.

● Flexible parameter settings. You can back up, restore or restore parameters to the factory. You can also modify the parameters manually in detail.

● Flexible encoder origin setting and direction automatic setting and fault self-checking. The hardware installation of the encoder does not need to consider the position, just set the software.

● Automatically configure the parking space, and it will be fast and low in less than one circle. After configuration, the machine will automatically calculate the inertia distance of the machine, and the position after deceleration will be at least one step faster.

● Hardware monitoring system. PLC output points, relays, contactors, PLC and touch screen, PLC and computer, PLC has an extended line real-time monitoring function, and the abnormal alarm in the touch screen prompts the cause of the fault. Detailed hardware and software fault information, users can easily troubleshoot according to the prompts.
