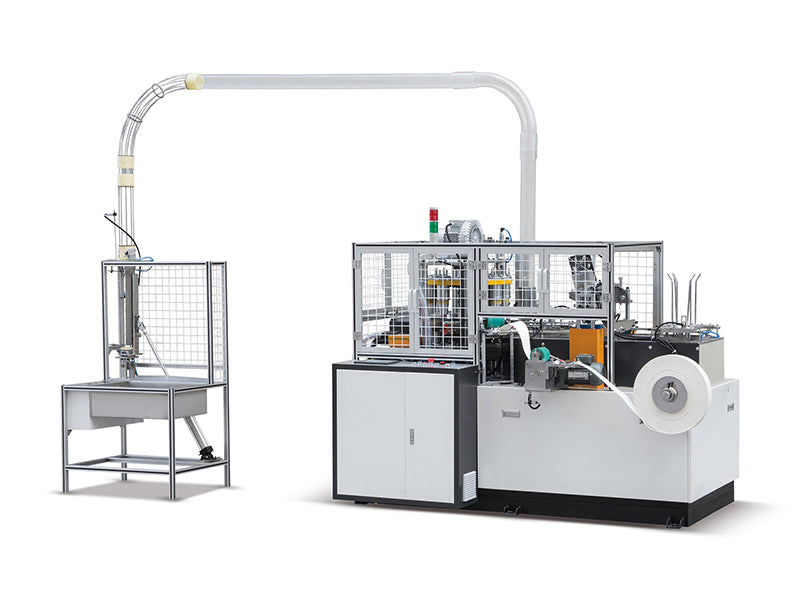

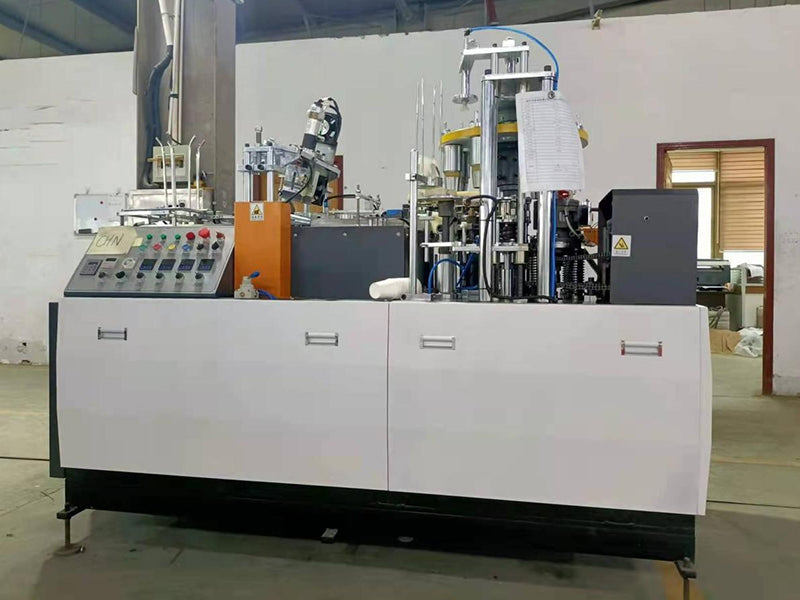

NW-LP16 Paper Cup Machine

Features：The working principle of the paper cup machine is that a main motor drives the whole machine to realize the perfect integration of gear and cam structure.Now the machine uses a single aluminum disk instead of the previous three-disk machine, greatly reducing the failure rate of the machine and reducing the training time for the operators.A 2-16oz odd-even shower film paper cup can be made according to customer request.Is a automatic paper cup molding equipment, through rows of automatic paper, paper device (ensure accurate positioning), ultrasonic or copper welding, mechanical paper transfer, oil injection, bottom, folding, preheating, rolling, cup, unloading continuous process, can stabilize the production of different specifications of paper cup, is our company after comprehensive technical improvement to improve the stability of the paper cup equipment.

Technical Parameter:



Model	LP16	T:ф45-90mm  B:ф35-70mm  H:32-136mm
Production speed	70-90pcs/min
Size	2-16OZ
Voltage	Three phase380V/50hz
Compressed air configuration	0.6-0.8MPa,0.4m³/min
Machine Size	2200x1250x1900mm ( L*W*H)
Machine size of machine machine machine	2800x1250x1900mm (L*W*H) Weight:2100kg
Paper type	Single and double PE/PLA
Machine power	7kw
Weight	1750Kg 2000Kg(Contains wooden box)
Paper thickness requirements	150-350g/㎡;±20g/㎡
The cup body sticks in	Ultrasonic
Bottom rolling flowers	Blowing heating
Molds can be customized according to customer requirements at extra cost



Mechanical details:

● Multi-model modules. Use simple window prompts for guidance and select the model to set.

● Flexible parameter settings. You can back up, restore or restore the parameters to the factory. You can also modify the parameters manually in detail.

● Flexible encoder origin setting and automatic direction setting as well as fault self-checking. The hardware installation of the encoder does not need to consider the position, just set the software.

● Automatically configure the parking space, and quickly lower it in less than one circle. After configuration, the machine will automatically calculate the inertia distance of the machine, and the position after deceleration will be at least one step faster.

● The key station sensor signal of the system is automatically calculated and identified. The molding failure can be encountered by simply operating the start button. The system automatically tracks the signal according to the sensor, so that the mold stops quickly in the middle of the two heaters.

● The stop cup is automatically removed. After the machine stops abnormally, the system automatically removes the heater and the bracket position because the heater is burned out and the adhesive is not strong.

● Intelligent temperature control of the heating system. Through PLC PID control of temperature, users only need to select paper manufacturer, weight, single/double PE, the system will automatically set the corresponding target temperature, and the speed of the machine will change when the target temperature is automatically adjusted. Users can also customize the target temperature control.

● (Optional) Visual system defect detection. Automatically identify paper cup shape, internal, bottom defects, and automatically remove them. Unique algorithm, light gray stain recognition is accurate and stable. One-click quick setting of parameters, and each parameter can also be modified in detail. The system supports internal network monitoring output reports.

● Hardware monitoring system. PLC output points, relays, contactors, PLC and touch screen, PLC and computer, PLC has an extended line real-time monitoring function, and the abnormal alarm in the touch screen prompts the cause of the fault. Detailed hardware and software fault information, users can easily troubleshoot according to the prompts.
